| Manufacturer Part Number: | LCMXO2280C-3M132C |
|---|---|
| Manufacturer: | Lattice Semiconductor Corporation |
| Product Category: | Embedded - FPGAs (Field Programmable Gate Array) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC FPGA 101 I/O 132CSBGA |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LCMXO2280C-3M132C Datasheet |
| Internal Part Number | 898-LCMXO2280C-3M132C | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Tin/Lead Devices 23/Jun/2015 | |
| PCN Assembly/Origin | Alternate Qualified Test Site 30/Sep/2013 Alternate Foundry Site 09/Jun/2014 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - FPGAs (Field Programmable Gate Array) | |
| Manufacturer | Lattice Semiconductor Corporation | |
| Series | MachXO | |
| Part Status | Obsolete | |
| Number of LABs/CLBs | 285 | |
| Number of Logic Elements/Cells | 2280 | |
| Total RAM Bits | 28262 | |
| Number of I/O | 101 | |
| Number of Gates | - | |
| Voltage - Supply | 1.71 V ~ 3.465 V | |
| Mounting Type | Surface Mount | |
| Operating Temperature | 0°C ~ 85°C (TJ) | |

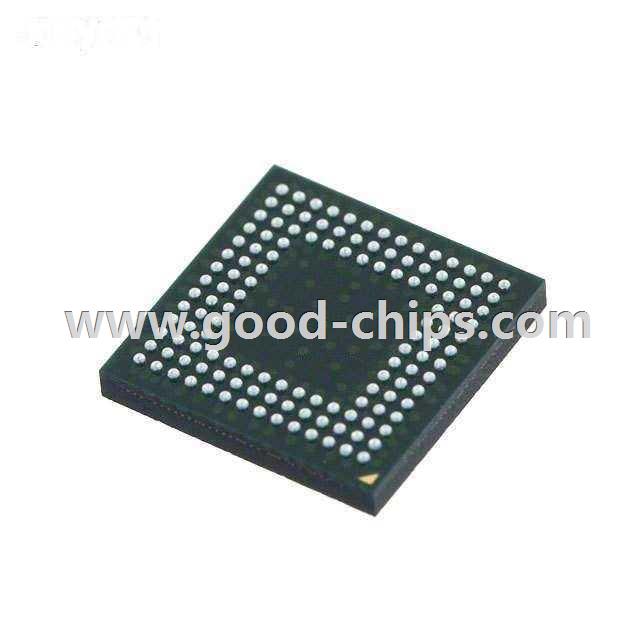

| Package / Case | 132-LFBGA, CSPBGA | |
| Supplier Device Package | 132-CSPBGA (8x8) | |
| Standard Package | 360 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LCMXO2280C-3M132C | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LCMXO2280C-3M132C is in stock for immediate shipping now. We are the distributor of Lattice Semiconductor Corporation all series components. The condition of LCMXO2280C-3M132C is new and unused, you can buy LCMXO2280C-3M132C Lattice Semiconductor Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LCMXO2280C-3M132C.
