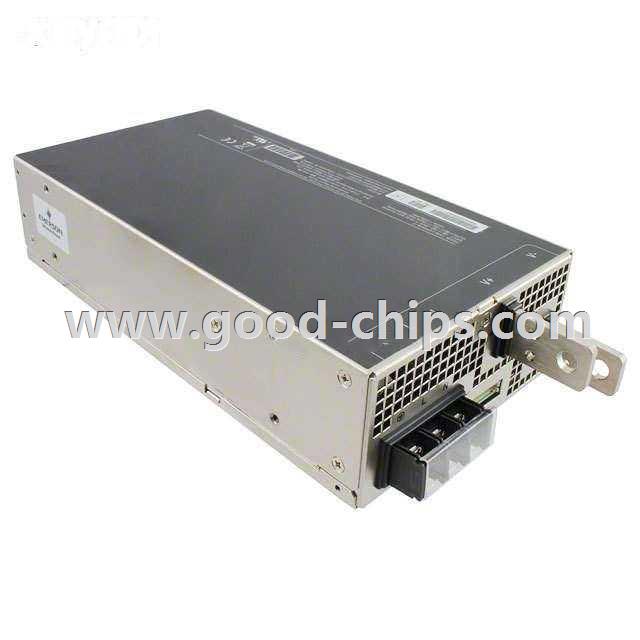

| Manufacturer Part Number: | LCM1500L-T-4 |
|---|---|
| Manufacturer: | Artesyn Embedded Technologies |
| Product Category: | AC DC Converters |
| Available Quantity: | 9055 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 12V 1500W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LCM1500L-T-4 Datasheet |
| Internal Part Number | 898-LCM1500L-T-4 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LCM1500 Series Power Supply | |
| Online Catalog | LCM1500 Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | Artesyn Embedded Technologies | |
| Series | LCM1500 | |
| Part Status | Active | |
| Type | Front End | |
| Number of Outputs | 1 | |
| Voltage - Input | 90 ~ 264 VAC | |
| Voltage - Output 1 | 12V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 133A | |
| Power (Watts) | 1500W | |
| Applications | ITE (Commercial), Medical | |
| Voltage - Isolation | 4kV (4000V) | |
| Efficiency | 91% | |
| Operating Temperature | -40°C ~ 70°C (With Derating) | |
| Features | Adjustable Output, I²C™ Interface, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 10.00" L x 5.20" W x 2.43" H (254.0mm x 132.0mm x 61.7mm) | |
| Minimum Load Required | No | |
| Approvals | BSMI, CB, CCC, CE, cURus, TUV | |
| Power (Watts) - Max | 1500W | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LCM1500L-T-4 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LCM1500L-T-4 is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of LCM1500L-T-4 is new and unused, you can buy LCM1500L-T-4 Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LCM1500L-T-4.
