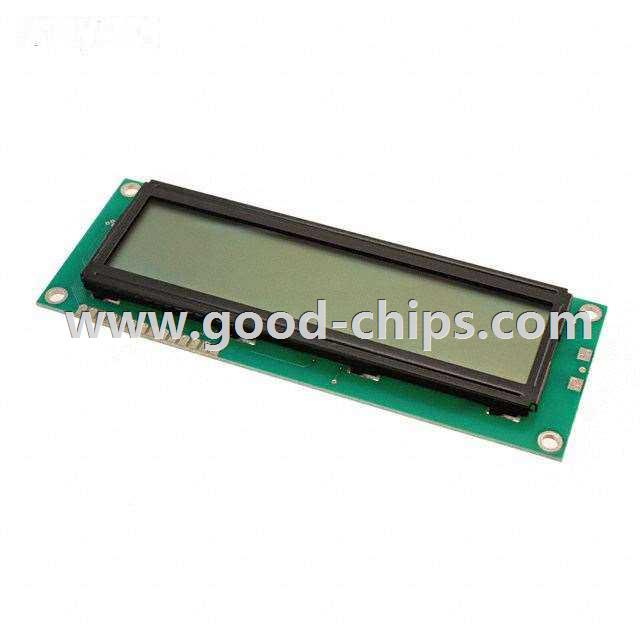

| Manufacturer Part Number: | LCM-S01602DSR/D |
|---|---|
| Manufacturer: | Lumex Opto/Components Inc. |
| Product Category: | Display Modules - LCD, OLED Character and Numeric |
| Available Quantity: | 9594 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LCD Display Module Reflective 5 x 8 Dots STN - Super-Twisted Nematic Without Backlight Parallel 122.00mm x 44.00mm x 8.80mm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LCM-S01602DSR/D Datasheet |
| Internal Part Number | 898-LCM-S01602DSR/D | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LEDs LCD Technology Extreme Temperature LCDs Benefits of Custom LED and LCD Technology Bi-Stable LCD Technology | |
| RoHS Information | RoHS Cert of Compliance | |
| Online Catalog | InfoVue™ | |
| Category | Optoelectronics | |
| Family | Display Modules - LCD, OLED Character and Numeric | |
| Manufacturer | Lumex Opto/Components Inc. | |
| Series | - | |
| Part Status | Active | |
| Number of Characters | 32 | |
| Display Format | 16 x 2 | |
| Character Format | 5 x 8 Dots | |
| Display Type | STN - Super-Twisted Nematic | |
| Display Mode | Reflective | |
| Character Size | 9.63mm H x 4.84mm W | |
| Outline L x W x H | 122.00mm x 44.00mm x 8.80mm | |
| Viewing Area | 99.00mm L x 24.00mm W | |
| Backlight | Without Backlight | |
| Voltage - Supply | 5V | |
| Dot Size | 1.16mm W x 1.16mm H | |
| Interface | Parallel | |
| Operating Temperature | 0°C ~ 50°C | |
| Text Color | - | |
| Background Color | Green | |
| Standard Package | 30 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LCM-S01602DSR/D | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LCM-S01602DSR/D is in stock for immediate shipping now. We are the distributor of Lumex Opto/Components Inc. all series components. The condition of LCM-S01602DSR/D is new and unused, you can buy LCM-S01602DSR/D Lumex Opto/Components Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LCM-S01602DSR/D.
