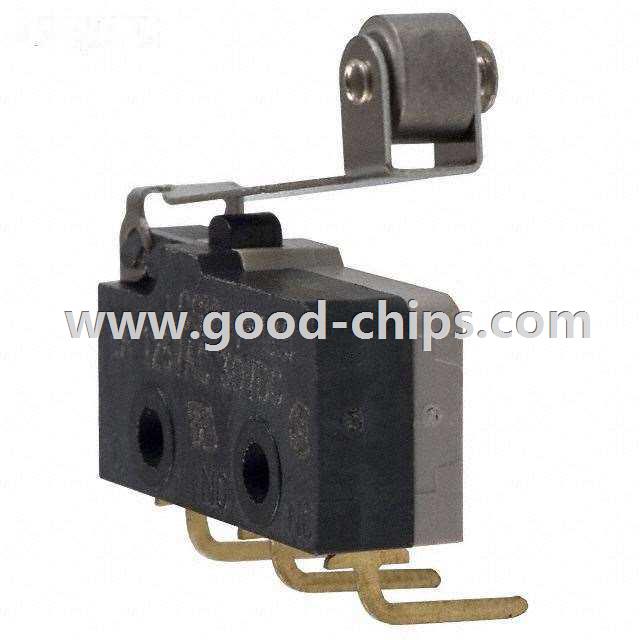

| Manufacturer Part Number: | LCGHF5A10LC |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9262 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACTION SPDT 1A 125V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LCGHF5A10LC Datasheet |
| Internal Part Number | 898-LCGHF5A10LC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Sub-Miniature Snap Switches Introduction to Electromechanical Switches Industrial Switches for Safety and Security Building Automation Applications | |
| Featured Product | Industrial Switches – C&K Components | DigiKey | |
| PCN Design/Specification | LC Series Base Material 25/May/2010 | |
| Online Catalog | LC, LCA, and LCS Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | C&K Components | |
| Series | LC | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 1A (AC/DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 30V | |
| Actuator Type | Lever, Roller | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Ingress Protection | - | |
| Features | - | |
| Operating Force, Torque | 57gf | |
| Release Force | 12gf | |
| Pretravel | 0.140" (3.6mm) | |
| Differential Travel | 0.034" (0.86mm) | |
| Overtravel | 0.029" (0.74mm) | |
| Operating Position | 0.560" (14.2mm) | |
| Mechanical Life | - | |
| Electrical Life | 6,000 Cycles | |
| Operating Temperature | -25°C ~ 85°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LCGHF5A10LC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LCGHF5A10LC is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of LCGHF5A10LC is new and unused, you can buy LCGHF5A10LC C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LCGHF5A10LC.
