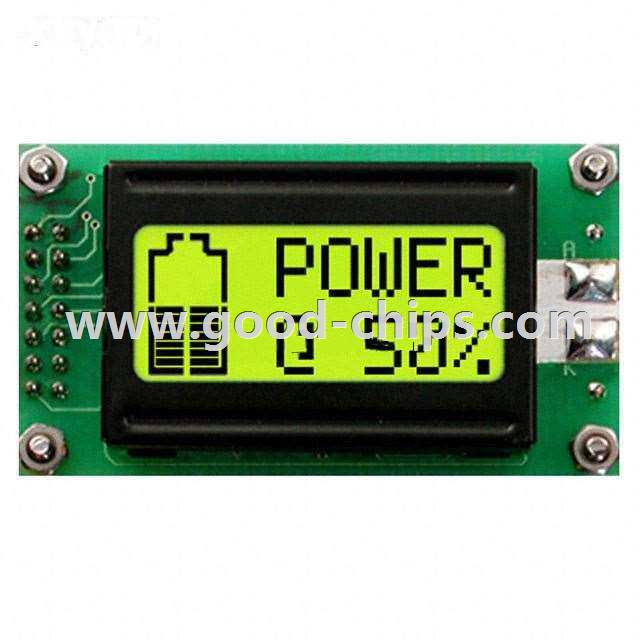

| Manufacturer Part Number: | LCD0821-E |
|---|---|
| Manufacturer: | Matrix Orbital |
| Product Category: | Display Modules - LCD, OLED Character and Numeric |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LCD Display Module Transmissive 5 x 8 Dots TN - Twisted Nematic LED - Yellow/Green I²C, RS232, TTL 58.00mm x 32.00mm x 26.80mm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LCD0821-E Datasheet |
| Internal Part Number | 898-LCD0821-E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Optoelectronics | |
| Family | Display Modules - LCD, OLED Character and Numeric | |
| Manufacturer | Matrix Orbital | |
| Series | LCD0821 | |
| Part Status | Active | |
| Number of Characters | 16 | |
| Display Format | 8 x 2 | |
| Character Format | 5 x 8 Dots | |
| Display Type | TN - Twisted Nematic | |
| Display Mode | Transmissive | |
| Character Size | 5.56mm H x 2.96mm W | |
| Outline L x W x H | 58.00mm x 32.00mm x 26.80mm | |
| Viewing Area | 38.00mm L x 16.00mm W | |
| Backlight | LED - Yellow/Green | |
| Voltage - Supply | 4.75 V ~ 5.25 V | |
| Dot Size | 0.56mm W x 0.66mm H | |
| Interface | I²C, RS232, TTL | |
| Operating Temperature | -20°C ~ 70°C | |
| Text Color | Black | |
| Background Color | Green | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LCD0821-E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LCD0821-E is in stock for immediate shipping now. We are the distributor of Matrix Orbital all series components. The condition of LCD0821-E is new and unused, you can buy LCD0821-E Matrix Orbital with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LCD0821-E.
