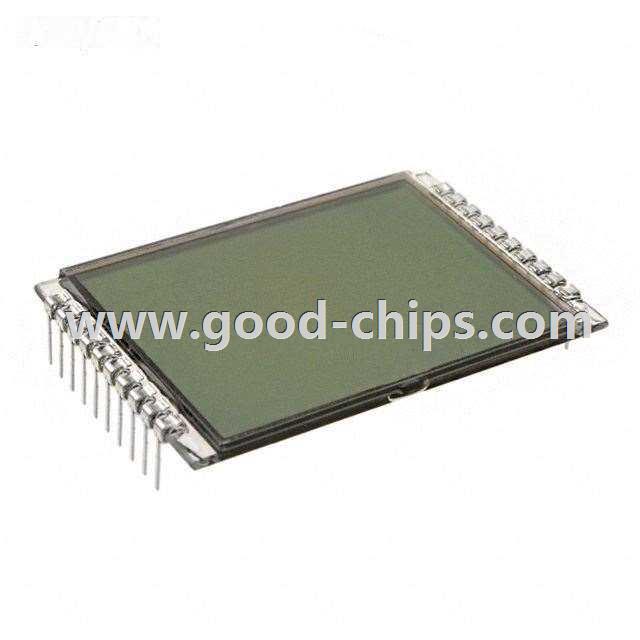

| Manufacturer Part Number: | LCD-S101D14TR |
|---|---|
| Manufacturer: | Lumex Opto/Components Inc. |
| Product Category: | Display Modules - LCD, OLED Character and Numeric |
| Available Quantity: | 9470 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LCD Display Module Reflective 7-Segment TN - Twisted Nematic Without Backlight 33.00mm x 50.00mm x 2.80mm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LCD-S101D14TR Datasheet |
| Internal Part Number | 898-LCD-S101D14TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LEDs LCD Technology Extreme Temperature LCDs Benefits of Custom LED and LCD Technology Bi-Stable LCD Technology | |
| RoHS Information | RoHS Cert of Compliance | |
| Online Catalog | InfoVue™ | |
| Category | Optoelectronics | |
| Family | Display Modules - LCD, OLED Character and Numeric | |
| Manufacturer | Lumex Opto/Components Inc. | |
| Series | - | |
| Part Status | Active | |
| Number of Characters | 1 | |
| Display Format | 1 x 1 | |
| Character Format | 7-Segment | |
| Display Type | TN - Twisted Nematic | |
| Display Mode | Reflective | |
| Character Size | 34.54mm H x 19.00mm W | |
| Outline L x W x H | 33.00mm x 50.00mm x 2.80mm | |
| Viewing Area | 27.90mm L x 38.90mm W | |
| Backlight | Without Backlight | |
| Voltage - Supply | 5V | |
| Dot Size | - | |
| Interface | - | |
| Operating Temperature | 0°C ~ 50°C | |
| Text Color | - | |
| Background Color | - | |
| Standard Package | 40 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LCD-S101D14TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LCD-S101D14TR is in stock for immediate shipping now. We are the distributor of Lumex Opto/Components Inc. all series components. The condition of LCD-S101D14TR is new and unused, you can buy LCD-S101D14TR Lumex Opto/Components Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LCD-S101D14TR.
