| Manufacturer Part Number: | LC5512MV-45F256C |
|---|---|
| Manufacturer: | Lattice Semiconductor Corporation |
| Product Category: | Embedded - CPLDs (Complex Programmable Logic Devices) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC CPLD 512MC 4.5NS 256FBGA |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LC5512MV-45F256C Datasheet |
| Internal Part Number | 898-LC5512MV-45F256C | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Tin/Lead Devices 23/Jun/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - CPLDs (Complex Programmable Logic Devices) | |
| Manufacturer | Lattice Semiconductor Corporation | |
| Series | ispXPLD® 5000MV | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Programmable Type | In System Programmable | |
| Delay Time tpd(1) Max | 4.5ns | |
| Voltage Supply - Internal | 3 V ~ 3.6 V | |
| Number of Logic Elements/Blocks | 16 | |
| Number of Macrocells | 512 | |
| Number of Gates | - | |
| Number of I/O | 193 | |
| Operating Temperature | 0°C ~ 90°C (TJ) | |
| Mounting Type | Surface Mount | |

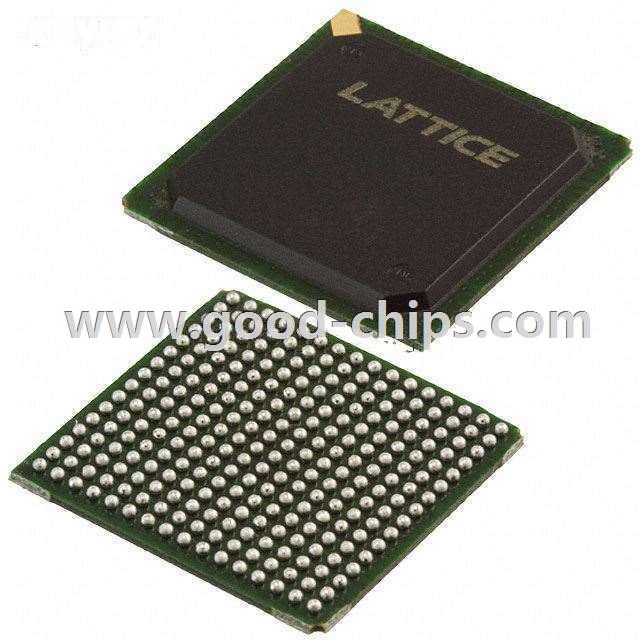

| Package / Case | 256-BGA | |
| Supplier Device Package | 256-FPBGA (17x17) | |
| Standard Package | 90 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LC5512MV-45F256C | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LC5512MV-45F256C is in stock for immediate shipping now. We are the distributor of Lattice Semiconductor Corporation all series components. The condition of LC5512MV-45F256C is new and unused, you can buy LC5512MV-45F256C Lattice Semiconductor Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LC5512MV-45F256C.
