Manufacturer Part Number: | LB2016T330M |
---|---|
Manufacturer: | Taiyo Yuden |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

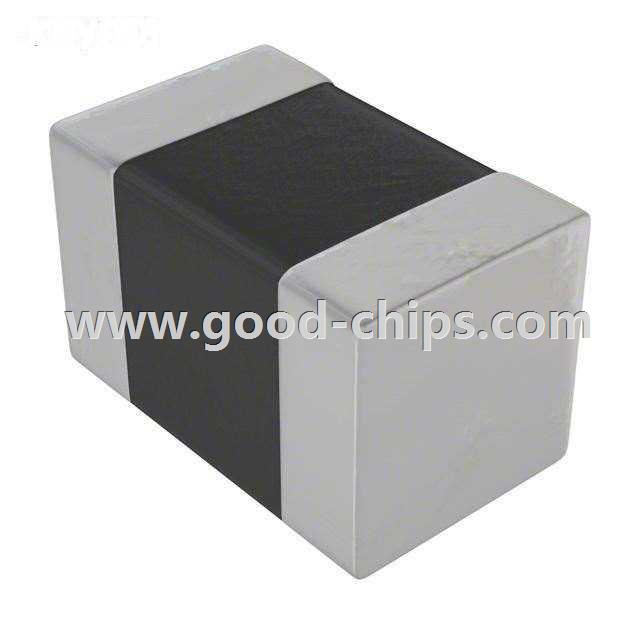

Description: | 33µH Unshielded Wirewound Inductor 85mA 1.7 Ohm 0806 (2016 Metric) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LB2016T330M Datasheet |
Internal Part Number | 898-LB2016T330M | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | EMC Applications | |
Featured Product | LB Series Inductors | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Taiyo Yuden | |
Series | LB | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | - | |
Inductance | 33µH | |
Tolerance | ±20% | |
Current Rating | 85mA | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 1.7 Ohm | |
Q @ Freq | - | |
Frequency - Self Resonant | 14MHz | |
Ratings | - | |
Operating Temperature | -25°C ~ 105°C | |
Frequency - Test | 2.52MHz | |
Mounting Type | Surface Mount | |
Package / Case | 0806 (2016 Metric) | |
Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | |
Height - Seated (Max) | 0.071" (1.80mm) | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LB2016T330M | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LB2016T330M is in stock for immediate shipping now. We are the distributor of Taiyo Yuden all series components. The condition of LB2016T330M is new and unused, you can buy LB2016T330M Taiyo Yuden with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LB2016T330M.
