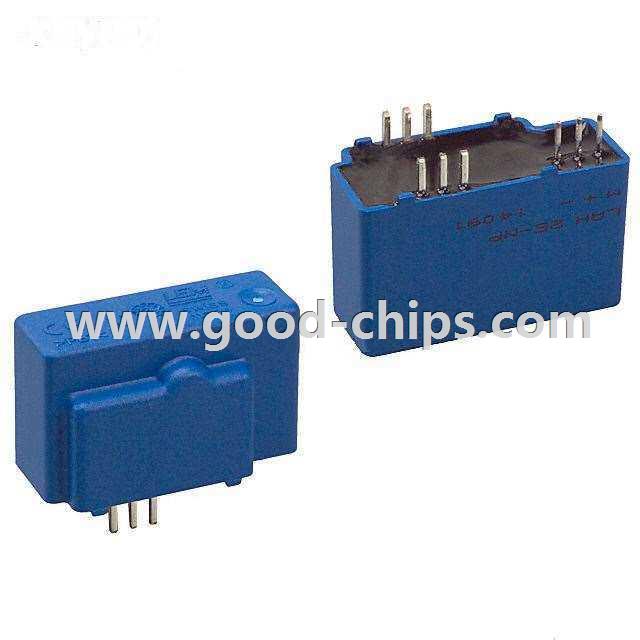

Manufacturer Part Number: | LAH 25-NP |
---|---|
Manufacturer: | LEM USA Inc. |
Product Category: | Current Transducers |
Available Quantity: | 9241 Pieces |
Unit Price: | Quote by Email |
Description: | Current Sensor 8A, 12A, 25A (Selectable) 1 Channel Hall Effect, Closed Loop Bidirectional |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LAH 25-NP Datasheet |
Internal Part Number | 898-LAH 25-NP | |
Manufacturer Lead time | 6-8 weeks | |
지위 | New & Unused, Original Sealed | |
Online Catalog | LAH | |
Category | Sensors, Transducers | |
Family | Current Transducers | |
Manufacturer | LEM USA Inc. | |
Series | LAH | |
Packaging | Bulk | |
Part Status | Active | |
For Measuring | AC/DC | |
Sensor Type | Hall Effect, Closed Loop | |
Current - Sensing | 8A, 12A, 25A (Selectable) | |
Number of Channels | 1 | |
Output | Ratiometric, Current | |
Sensitivity | - | |
Frequency | DC ~ 200kHz | |
Linearity | ±0.2% | |
Accuracy | ±0.3% | |
Voltage - Supply | ±12 V ~ 15 V | |
Response Time | 0.5µs | |
Current - Supply (Max) | 35mA | |
Operating Temperature | -25°C ~ 85°C | |
Polarization | Bidirectional | |
Mounting Type | Through Hole | |
Package / Case | - | |
Standard Package | 12 | |
무게 | 0.001 KG | |
신청 | Email for details | |
Replacement Part | LAH 25-NP | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LAH 25-NP is in stock for immediate shipping now. We are the distributor of LEM USA Inc. all series components. The condition of LAH 25-NP is new and unused, you can buy LAH 25-NP LEM USA Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LAH 25-NP.
