Manufacturer Part Number: | L826-1X4T-43-F |
---|---|
Manufacturer: | Bel Fuse Inc. |
Product Category: | Modular Connectors - Jacks With Magnetics |
Available Quantity: | 9734 Pieces |
Unit Price: | Quote by Email |

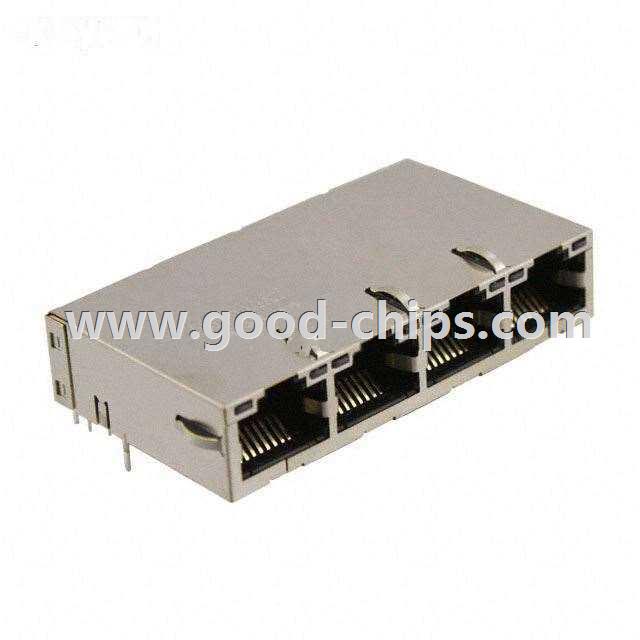

Description: | 4 Port RJ45 Magjack Connector Through Hole 10/100/1000 Base-T, AutoMDIX |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | L826-1X4T-43-F Datasheet |
Internal Part Number | 898-L826-1X4T-43-F | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | MagJack® Integrated Magnetics Modular Jacks | |
Featured Product | Bel - MagJack Integrated Connector Modules Connectivity Solutions Magnetics Solutions | |
Online Catalog | MagJack® Series | |
Category | Connectors, Interconnects | |
Family | Modular Connectors - Jacks With Magnetics | |
Manufacturer | Bel Fuse Inc. | |
Series | MagJack® | |
Packaging | Tray | |
Part Status | Active | |
Connector Type | RJ45 | |
Number of Ports | 4 | |
Number of Rows | 1 | |
Applications | 10/100/1000 Base-T, AutoMDIX | |
Mounting Type | Through Hole | |
Orientation | 90° Angle (Right) | |
Termination | Solder | |
Height Above Board | 0.489" (12.42mm) | |
LED Color | Green, Orange - Yellow | |
Number of Cores per Jack | 8 | |
Shielding | Shielded, EMI Finger | |
Features | Board Guide | |
Tab Direction | Up | |
Contact Material | Copper Alloy | |
Contact Finish | Gold | |
Contact Finish Thickness | 50µin (1.27µm) | |
Shield Material | Copper Alloy | |
Housing Material | Polybutylene Terephthalate (PBT) | |
Operating Temperature | 0°C ~ 70°C | |
Standard Package | 24 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | L826-1X4T-43-F | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
L826-1X4T-43-F is in stock for immediate shipping now. We are the distributor of Bel Fuse Inc. all series components. The condition of L826-1X4T-43-F is new and unused, you can buy L826-1X4T-43-F Bel Fuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for L826-1X4T-43-F.
