| Manufacturer Part Number: | L7985ATR |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 19010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 2A 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | L7985ATR Datasheet |
| Internal Part Number | 898-L7985ATR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | L7985 View All Specifications L7985 View All Specifications | |
| Product Training Modules | DC to DC Conversion Cookbook | |
| Online Catalog | Buck (Step-Down) IC | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | STMicroelectronics | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 38V | |
| Voltage - Output (Min/Fixed) | 0.6V | |
| Voltage - Output (Max) | 38V | |
| Current - Output | 2A | |
| Frequency - Switching | 250kHz ~ 1MHz | |
| Synchronous Rectifier | No | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

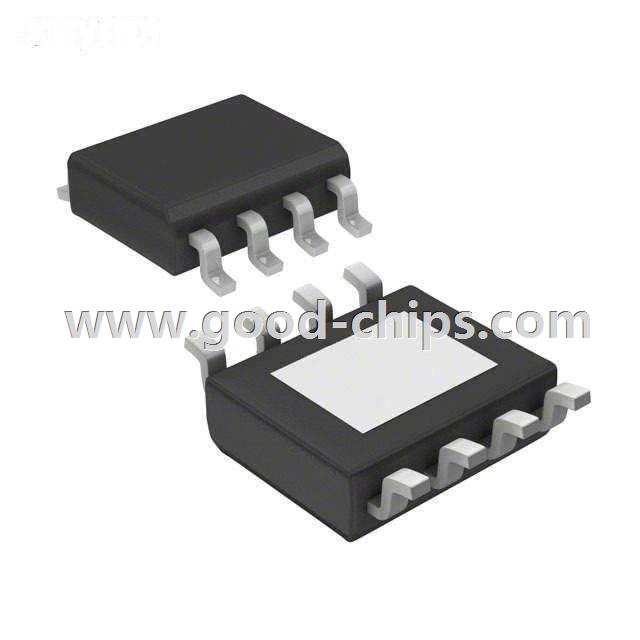

| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | |
| Supplier Device Package | 8-HSOP | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | L7985ATR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
L7985ATR is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of L7985ATR is new and unused, you can buy L7985ATR STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for L7985ATR.
