Manufacturer Part Number: | L77TWB13W3S |
---|---|
Manufacturer: | Amphenol Commercial Products |
Product Category: | D-Sub Connectors |
Available Quantity: | 9098 Pieces |
Unit Price: | Quote by Email |

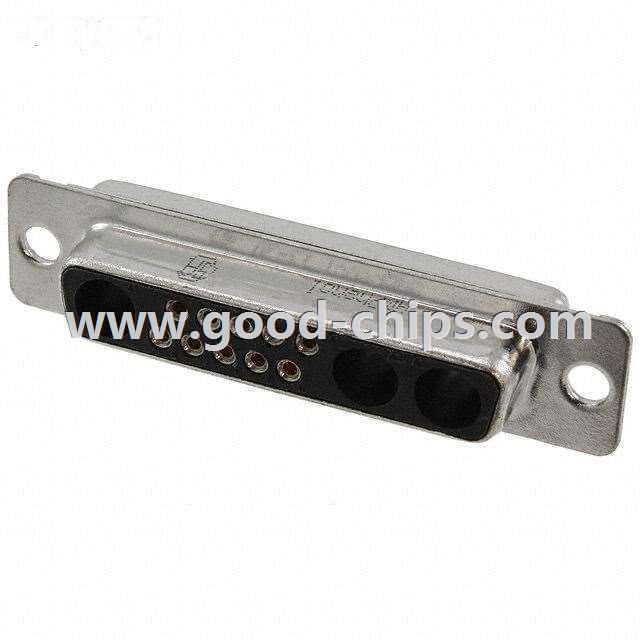

Description: | 13 (10 + 3 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector, Free Hanging (In-Line) Solder Cup |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | L77TWB13W3S Datasheet |
Internal Part Number | 898-L77TWB13W3S | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Communication Solutions Industrial Solutions | |
Online Catalog | TW Series | |
Category | Connectors, Interconnects | |
Family | D-Sub Connectors | |
Manufacturer | Amphenol Commercial Products | |
Series | TW | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | D-Sub, Combo | |
Connector Type | Receptacle, Female Sockets | |
Number of Positions | 13 (10 + 3 Power) | |
Number of Rows | 2 | |
Shell Size, Connector Layout | 3 (DB, B) - 13C3, 13W3 | |
Contact Type | Signal and Coax or Power (Not Included) | |
Mounting Type | Free Hanging (In-Line) | |
Flange Feature | Housing/Shell (Unthreaded) | |
Termination | Solder Cup | |
Features | - | |
Shell Material, Finish | Steel, Tin Plated | |
Contact Finish | Nickel | |
Contact Finish Thickness | 16µin (0.40µm) | |
Ingress Protection | - | |
Operating Temperature | -55°C ~ 155°C | |
Voltage Rating | 300V | |
Current Rating | 7.5A | |
Housing Material | Thermoplastic, Glass Filled | |
Color | Black | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | L77TWB13W3S | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
L77TWB13W3S is in stock for immediate shipping now. We are the distributor of Amphenol Commercial Products all series components. The condition of L77TWB13W3S is new and unused, you can buy L77TWB13W3S Amphenol Commercial Products with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for L77TWB13W3S.
