Manufacturer Part Number: | L717SDA15PA4CH4F |
---|---|
Manufacturer: | Amphenol Commercial Products |
Product Category: | D-Sub Connectors |
Available Quantity: | 13079 Pieces |
Unit Price: | Quote by Email |

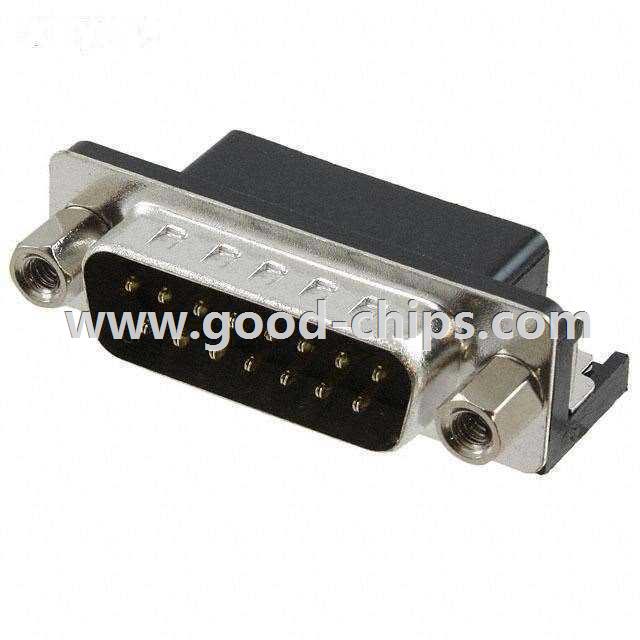

Description: | 15 Position D-Sub Plug, Male Pins Connector, Through Hole, Right Angle Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | L717SDA15PA4CH4F Datasheet |
Internal Part Number | 898-L717SDA15PA4CH4F | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Communication Solutions Industrial Solutions | |
Online Catalog | SD Series | |
Category | Connectors, Interconnects | |
Family | D-Sub Connectors | |
Manufacturer | Amphenol Commercial Products | |
Series | SD | |
Packaging | Tray | |
Part Status | Active | |
Connector Style | D-Sub | |
Connector Type | Plug, Male Pins | |
Number of Positions | 15 | |
Number of Rows | 2 | |
Shell Size, Connector Layout | 2 (DA, A) | |
Contact Type | Signal | |
Mounting Type | Through Hole, Right Angle | |
Flange Feature | Mating Side, Female Screwlock (4-40) | |
Termination | Solder | |
Features | Board Lock, Grounding Indents | |
Shell Material, Finish | Steel, Tin Plated | |
Contact Finish | Gold | |
Contact Finish Thickness | Flash | |
Ingress Protection | - | |
Operating Temperature | -55°C ~ 155°C | |
Voltage Rating | 250V | |
Current Rating | 5A | |
Housing Material | Thermoplastic, Glass Filled | |
Color | Black | |
Standard Package | 70 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | L717SDA15PA4CH4F | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
L717SDA15PA4CH4F is in stock for immediate shipping now. We are the distributor of Amphenol Commercial Products all series components. The condition of L717SDA15PA4CH4F is new and unused, you can buy L717SDA15PA4CH4F Amphenol Commercial Products with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for L717SDA15PA4CH4F.
