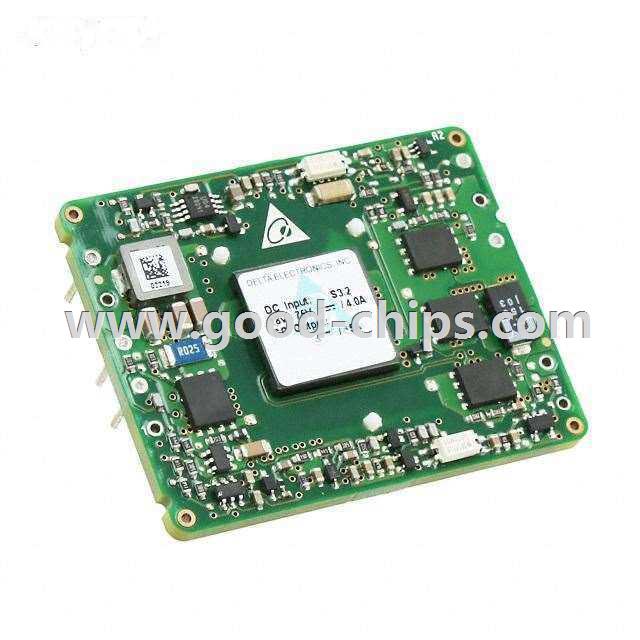

| Manufacturer Part Number: | L36SA3R315NRFA |
|---|---|
| Manufacturer: | Delta Electronics |
| Product Category: | DC DC Converters |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |
| Description: | MODULE DC/DC 1X1.6 3.3V 15A |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | L36SA3R315NRFA Datasheet |
| Internal Part Number | 898-L36SA3R315NRFA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Efficiency Isolated DC/DC Converters Isolated DC/DC Converter Design Considerations | |
| Featured Product | Delphi Series L36SA Converters DC/DC Converters – Delta Product Groups | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Delta Electronics | |
| Series | Delphi L36SA | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Isolated Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 18V | |
| Voltage - Input (Max) | 75V | |
| Voltage - Output 1 | 3.3V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 15A | |
| Power (Watts) - Manufacture Series | 50W | |
| Voltage - Isolation | 2.25kV (2250V) | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OVP, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 11-DIP Module | |
| Size / Dimension | 1.55" L x 1.95" W x 0.35" H (39.4mm x 49.6mm x 8.9mm) | |
| Operating Temperature | -40°C ~ 130°C | |
| Efficiency | 88% | |
| Power (Watts) - Max | 50W | |
| Standard Package | 96 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | L36SA3R315NRFA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
L36SA3R315NRFA is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of L36SA3R315NRFA is new and unused, you can buy L36SA3R315NRFA Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for L36SA3R315NRFA.
