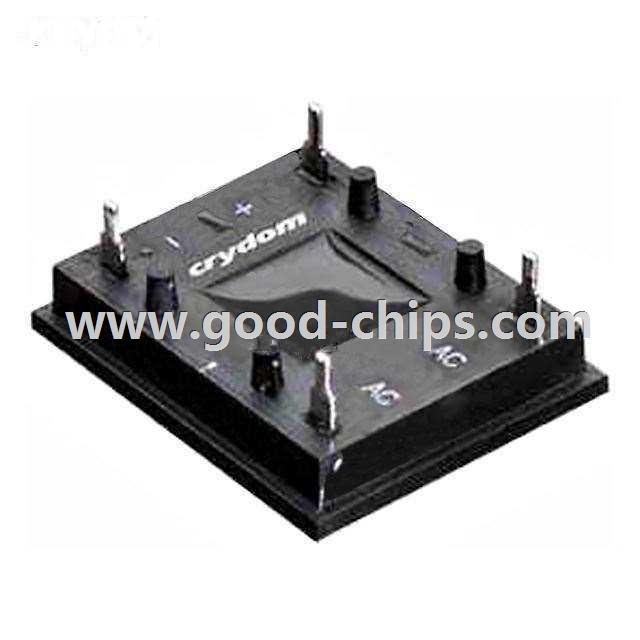

| Manufacturer Part Number: | L313 |
|---|---|
| Manufacturer: | Crydom Co. |
| Product Category: | Thyristors - SCRs - Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | SCR Module 800V 15A (DC) Bridge, Single Phase - SCRs/Diodes (Layout 1) Through Hole Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | L313 Datasheet |
| Internal Part Number | 898-L313 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | SCR Module Selection Guide Declaration of Conformity | |
| Category | Discrete Semiconductor Products | |
| Family | Thyristors - SCRs - Modules | |
| Manufacturer | Crydom Co. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) | |
| Number of SCRs, Diodes | 2 SCRs, 2 Diodes | |
| Voltage - Off State | 800V | |
| Current - Gate Trigger (Igt) (Max) | 100mA | |
| Current - On State (It (AV)) (Max) | - | |
| Current - On State (It (RMS)) (Max) | 15A (DC) | |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 2250A @ 60Hz | |
| Current - Hold (Ih) (Max) | - | |
| Mounting Type | Through Hole | |
| Package / Case | Module | |
| Standard Package | 5 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | L313 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
L313 is in stock for immediate shipping now. We are the distributor of Crydom Co. all series components. The condition of L313 is new and unused, you can buy L313 Crydom Co. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for L313.
