| Manufacturer Part Number: | L17SM209SB14T |
|---|---|
| Manufacturer: | Amphenol Commercial Products |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 10524 Pieces |
| Unit Price: | Quote by Email |

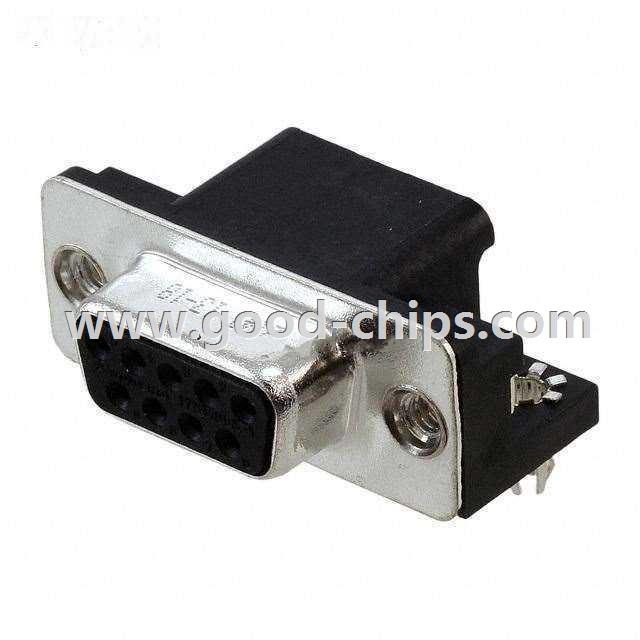

| Description: | 9 Position D-Sub Receptacle, Female Sockets Connector, Surface Mount, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | L17SM209SB14T Datasheet |
| Internal Part Number | 898-L17SM209SB14T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Communication Solutions Industrial Solutions | |
| Online Catalog | SM2 Series | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Amphenol Commercial Products | |
| Series | SM2 | |
| Packaging | Tube | |
| Part Status | Active | |
| Connector Style | D-Sub | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 9 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 1 (DE, E) | |
| Contact Type | Signal | |
| Mounting Type | Surface Mount, Right Angle | |
| Flange Feature | Board Side (4-40) | |
| Termination | Solder | |
| Features | Board Lock | |
| Shell Material, Finish | Steel, Tin Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 31.5µin (0.80µm) | |
| Ingress Protection | - | |
| Operating Temperature | 85°C ~ 105°C | |
| Voltage Rating | 300V | |
| Current Rating | 3A | |
| Housing Material | Thermoplastic, Glass Filled | |
| Color | Black | |
| Standard Package | 19 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | L17SM209SB14T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
L17SM209SB14T is in stock for immediate shipping now. We are the distributor of Amphenol Commercial Products all series components. The condition of L17SM209SB14T is new and unused, you can buy L17SM209SB14T Amphenol Commercial Products with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for L17SM209SB14T.
