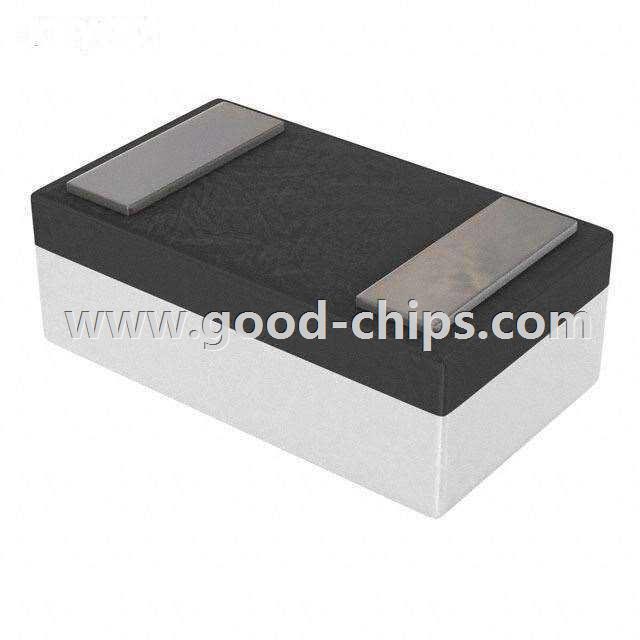

Manufacturer Part Number: | L04022R2BHNTR |
---|---|
Manufacturer: | AVX Corporation |
Product Category: | Fixed Inductors |
Available Quantity: | 14010 Pieces |
Unit Price: | Quote by Email |
Description: | 2.2nH Unshielded Thin Film Inductor 400mA 200 mOhm Max 0402 (1005 Metric) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | L04022R2BHNTR Datasheet |
Internal Part Number | 898-L04022R2BHNTR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | AVX - 0402 Thin Film Inductors | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | L0402 Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | AVX Corporation | |
Series | L0402 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Thin Film | |
Material - Core | Non-Magnetic | |
Inductance | 2.2nH | |
Tolerance | ±0.1nH | |
Current Rating | 400mA | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 200 mOhm Max | |
Q @ Freq | 15 @ 450MHz | |
Frequency - Self Resonant | 15GHz | |
Ratings | - | |
Operating Temperature | - | |
Frequency - Test | 450MHz | |
Mounting Type | Surface Mount | |
Package / Case | 0402 (1005 Metric) | |
Size / Dimension | 0.039" L x 0.023" W (1.00mm x 0.58mm) | |
Height - Seated (Max) | 0.018" (0.45mm) | |
Standard Package | 5,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | L04022R2BHNTR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
L04022R2BHNTR is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of L04022R2BHNTR is new and unused, you can buy L04022R2BHNTR AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for L04022R2BHNTR.
