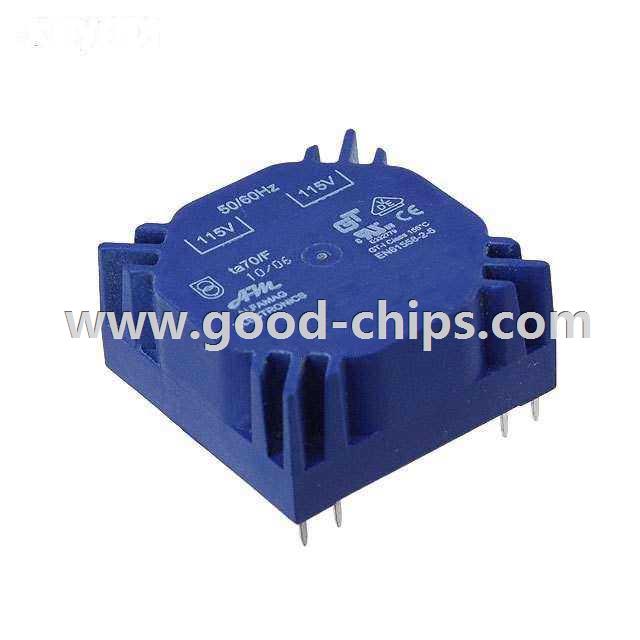

| Manufacturer Part Number: | L01-6323 |
|---|---|
| Manufacturer: | Amgis, LLC |
| Product Category: | Power Transformers |
| Available Quantity: | 9029 Pieces |
| Unit Price: | Quote by Email |
| Description: | XFRMR TOROIDAL 5VA THRU HOLE |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | L01-6323 Datasheet |
| Internal Part Number | 898-L01-6323 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | L01 Series PC Mount Toroidal Transformers | |
| Online Catalog | L01 Series | |
| Category | Transformers | |
| Family | Power Transformers | |
| Manufacturer | Amgis, LLC | |
| Series | L01 | |
| Part Status | Active | |
| Type | Toroidal | |
| Voltage - Primary | 115V, 230V | |
| Voltage - Secondary (Full Load) | Parallel 15V, Series 30V | |
| Current - Output (Max) | Parallel 334mA, Series 167mA | |
| Primary Winding(s) | Dual | |
| Secondary Winding(s) | Dual | |
| Center Tap | No | |
| Power - Max | 5 VA | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Size / Dimension | 49.70mm L x 49.70mm W | |
| Height - Seated (Max) | 19.50mm | |
| Voltage - Isolation | 4000Vrms | |
| Standard Package | 5 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | L01-6323 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
L01-6323 is in stock for immediate shipping now. We are the distributor of Amgis, LLC all series components. The condition of L01-6323 is new and unused, you can buy L01-6323 Amgis, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for L01-6323.
