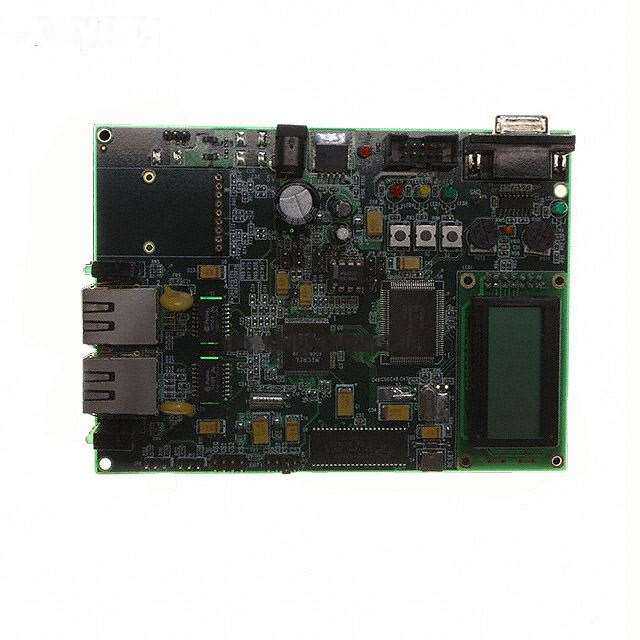

| Manufacturer Part Number: | KSZ8842-16MVL-EVAL |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | KSZ8842-16MVL - Interface, Ethernet Controller (PHY and MAC) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | KSZ8842-16MVL-EVAL Datasheet |
| Internal Part Number | 898-KSZ8842-16MVL-EVAL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Voice Video and Data Communications using a 2-Port Switch and Generic Bus Interface QoS Priority Support In the KSZ8842 Family PCB Design Considerations for KSZ8841/42 Family of Ethernet Controllers Capacitive Coupling Ethernet Transceivers without Using Transformers | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Part Status | Obsolete | |
| Main Purpose | Interface, Ethernet Controller (PHY and MAC) | |
| Embedded | No | |
| Utilized IC / Part | KSZ8842-16MVL | |
| Primary Attributes | 2 Ports, 100BASE-TX/10BASE-T | |
| Secondary Attributes | 8/16-Bit Interface, LinkMD Cable Diagnostics | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | KSZ8842-16MVL-EVAL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
KSZ8842-16MVL-EVAL is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of KSZ8842-16MVL-EVAL is new and unused, you can buy KSZ8842-16MVL-EVAL Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for KSZ8842-16MVL-EVAL.
