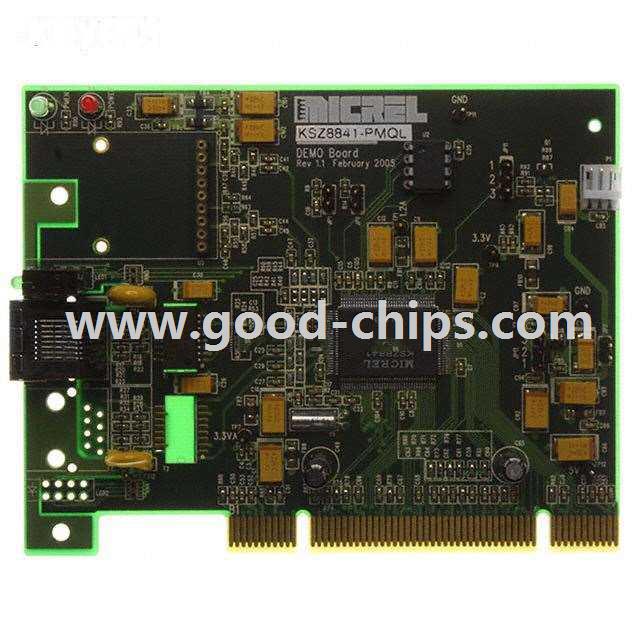

Manufacturer Part Number: | KSZ8841-PMQL-EVAL |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | KSZ8841-PMQL - Interface, Ethernet Controller (PHY and MAC) Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | KSZ8841-PMQL-EVAL Datasheet |
Internal Part Number | 898-KSZ8841-PMQL-EVAL | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Mfg Application Notes | Wake-on-LAN and Wake-up Event of Power Management PCB Design Considerations for KSZ8841/42 Family of Ethernet Controllers Capacitive Coupling Ethernet Transceivers without Using Transformers | |
Design Resources | Development Tool Selector | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Microchip Technology | |
Series | - | |
Part Status | Discontinued | |
Main Purpose | Interface, Ethernet Controller (PHY and MAC) | |
Embedded | No | |
Utilized IC / Part | KSZ8841-PMQL | |
Primary Attributes | 1 Port, 100BASE-TX/10BASE-T | |
Secondary Attributes | PCI Interface, LinkMD Cable Diagnostics | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | KSZ8841-PMQL-EVAL | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
KSZ8841-PMQL-EVAL is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of KSZ8841-PMQL-EVAL is new and unused, you can buy KSZ8841-PMQL-EVAL Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for KSZ8841-PMQL-EVAL.
