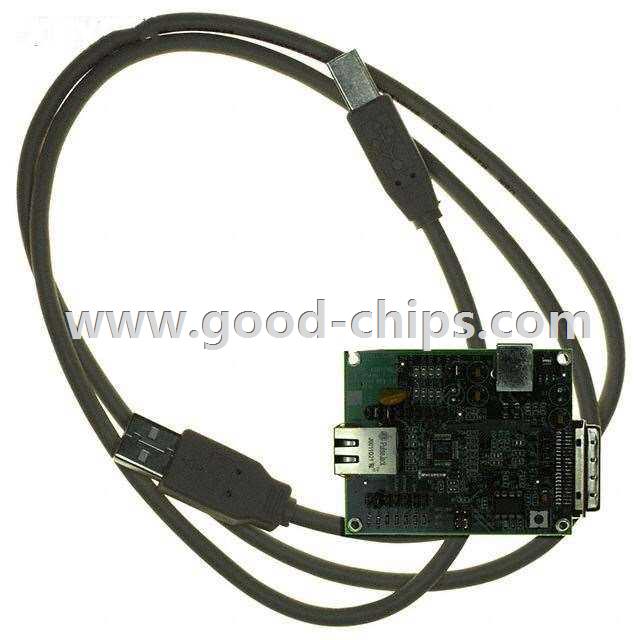

| Manufacturer Part Number: | KSZ8001L-EVAL |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | KSZ8001L - Interface, Ethernet PHY Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | KSZ8001L-EVAL Datasheet |
| Internal Part Number | 898-KSZ8001L-EVAL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | KS8721BL/CL, KS8001L Design Guide | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Part Status | Discontinued | |
| Main Purpose | Interface, Ethernet PHY | |
| Embedded | No | |
| Utilized IC / Part | KSZ8001L | |
| Primary Attributes | Single Chip PHY, 100BASE-TX/100BASE-FX/10BASE-T | |
| Secondary Attributes | MII, RMII, SMII, HP Auto MDI, MDI-X Auto Polarity Correction, LinkMD | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | KSZ8001L-EVAL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
KSZ8001L-EVAL is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of KSZ8001L-EVAL is new and unused, you can buy KSZ8001L-EVAL Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for KSZ8001L-EVAL.
