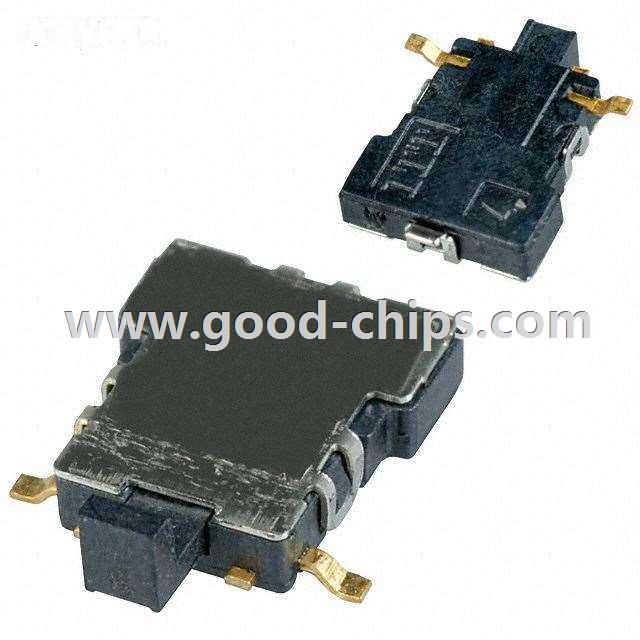

| Manufacturer Part Number: | KSM1131ZLFG |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Tactile Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Tactile Switch SPST-NC Side Actuated Surface Mount, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | KSM1131ZLFG Datasheet |
| Internal Part Number | 898-KSM1131ZLFG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | KSM 1131Z 17/Feb/2006 | |
| Category | Switches | |
| Family | Tactile Switches | |
| Manufacturer | C&K Components | |
| Series | KSM | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Circuit | SPST-NC | |
| Switch Function | On-Mom | |
| Contact Rating @ Voltage | 0.05A @ 24VDC | |
| Actuator Type | Standard | |
| Mounting Type | Surface Mount, Right Angle | |
| Actuator Height off PCB, from Pins | - | |
| Actuator Orientation | Side Actuated | |
| Termination Style | Gull Wing | |
| Outline | 6.40mm x 5.80mm | |
| Illumination | Non-Illuminated | |
| Illumination Voltage (Nominal) | - | |
| Illumination Type, Color | - | |
| Operating Force | 90gf | |
| Ingress Protection | - | |
| Features | - | |
| Actuator Material | - | |
| Switch Travel | 0.30mm | |
| Mechanical Life | 50,000 Cycles | |
| Operating Temperature | -40°C ~ 85°C | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | KSM1131ZLFG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
KSM1131ZLFG is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of KSM1131ZLFG is new and unused, you can buy KSM1131ZLFG C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for KSM1131ZLFG.
