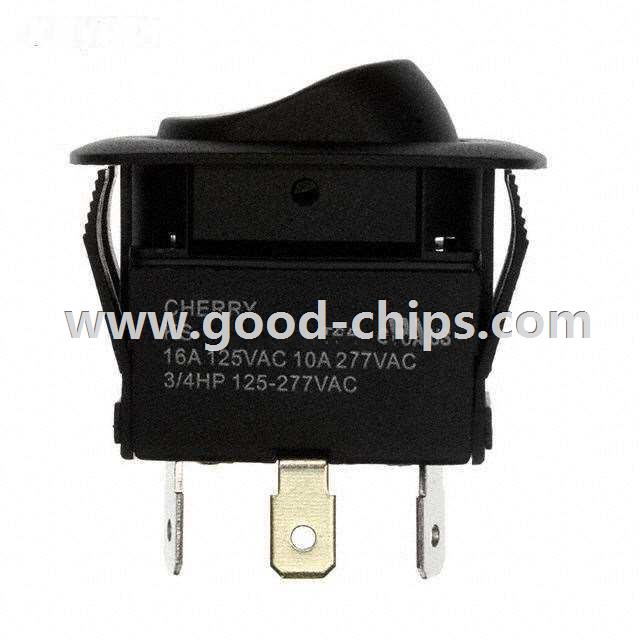

| Manufacturer Part Number: | KSF2BNB1BBB |
|---|---|
| Manufacturer: | Cherry |
| Product Category: | Rocker Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Rocker Switch SPDT 16A (AC), 21A (DC) 125V Panel Mount, Snap-In |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | KSF2BNB1BBB Datasheet |
| Internal Part Number | 898-KSF2BNB1BBB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Waterproof Rocker and Pushbutton Switches | |
| Category | Switches | |
| Family | Rocker Switches | |
| Manufacturer | Cherry | |
| Series | KS | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-On | |
| Current Rating | 16A (AC), 21A (DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 14V | |
| Actuator Type | Concave (Curved) | |
| Color - Actuator/Cap | Black | |
| Actuator Marking | No Marking | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount, Snap-In | |
| Termination Style | Quick Connect - 0.250" (6.3mm) | |
| Ingress Protection | IP56 - Dust Protected, Water Resistant | |
| Features | - | |
| Panel Cutout Dimensions | Rectangular - 36.60mm x 21.20mm | |
| Operating Temperature | -20°C ~ 85°C | |
| Mechanical Life | 100,000 Cycles | |
| Electrical Life | 6,000 Cycles | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | KSF2BNB1BBB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
KSF2BNB1BBB is in stock for immediate shipping now. We are the distributor of Cherry all series components. The condition of KSF2BNB1BBB is new and unused, you can buy KSF2BNB1BBB Cherry with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for KSF2BNB1BBB.
