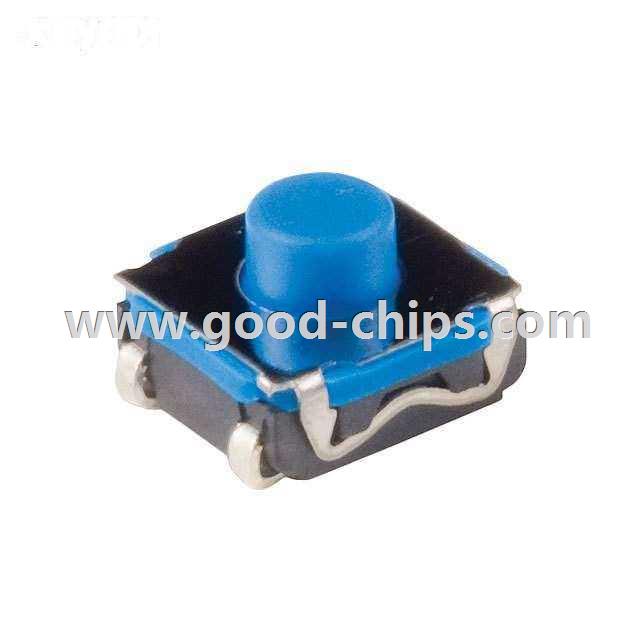

KSC701G LFS

KSC701G LFS
Manufacturer Part Number:KSC701G LFS
Manufacturer:
Product Category:Tactile Switches
Available Quantity:10010 Pieces
Unit Price:Quote by Email
Description:Tactile Switch SPST-NO Top Actuated Surface Mount
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: KSC701G LFS Datasheet
KSC701G LFS´s Parameters
Internal Part Number898-KSC701G LFS
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesSealed Switch – Part 1
Sealed Switch – Part 2
Sealed Switch – Part 3
Sealed Switch – Part 4
Introduction to Electromechanical Switches
Industrial Switches for Safety and Security
RoHS InformationRoHS Cert of Compliance
Featured ProductKSC Series Switches
Online Catalog KSC Series
CategorySwitches
FamilyTactile Switches
ManufacturerC&K Components
SeriesKSC
PackagingTape & Reel (TR)
Part StatusActive
CircuitSPST-NO
Switch FunctionOff-Mom
Contact Rating @ Voltage0.05A @ 32VDC
Actuator TypeStandard
Mounting TypeSurface Mount
Actuator Height off PCB, from Pins4.30mm
Actuator OrientationTop Actuated
Termination StyleGull Wing
Outline6.20mm x 6.20mm
IlluminationNon-Illuminated
Illumination Voltage (Nominal)-
Illumination Type, Color-
Operating Force160gf
Ingress ProtectionIP67 - Dust Tight, Waterproof
Features-
Actuator Material-
Switch Travel0.30mm
Mechanical Life5,000,000 Cycles
Operating Temperature-40°C ~ 85°C
Standard Package 1,000
Weight0.001 KG
ApplicationEmail for details
Replacement PartKSC701G LFS
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

KSC701G LFS is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of KSC701G LFS is new and unused, you can buy KSC701G LFS C&K Components with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for KSC701G LFS.
