| Manufacturer Part Number: | KO103C701 |
|---|---|
| Manufacturer: | E-Switch |
| Product Category: | Keylock Switches |
| Available Quantity: | 9647 Pieces |
| Unit Price: | Quote by Email |

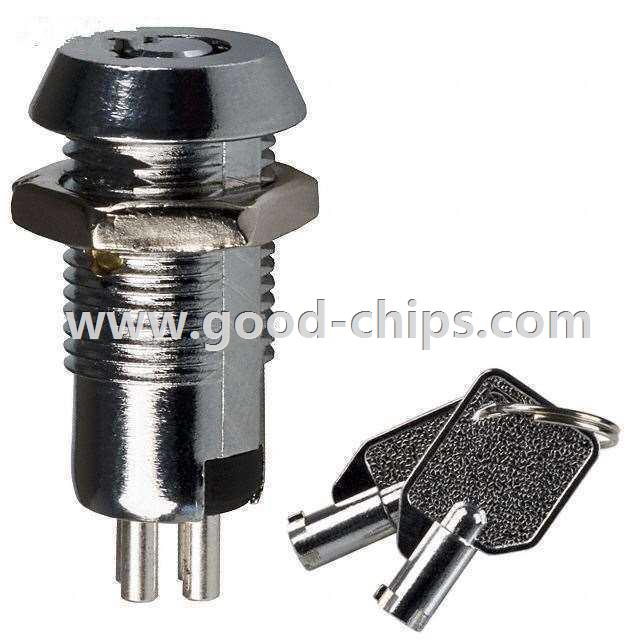

| Description: | Keylock Switch 2 Position SPDT 1A (AC) 125V (AC) Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | KO103C701 Datasheet |
| Internal Part Number | 898-KO103C701 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Switch Basics Power Switch Overview | |
| RoHS Information | KO Series RoHS Cert of Compliance | |
| Online Catalog | KO Series | |
| Category | Switches | |
| Family | Keylock Switches | |
| Manufacturer | E-Switch | |
| Series | KO | |
| Part Status | Active | |
| Circuit | SPDT | |
| Number of Positions | 2 | |
| Switch Function | On-On | |
| Contact Timing | Not Specified | |
| Current Rating | 1A (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Tubular Key | |
| Key Removable Positions | 1 only | |
| Angle of Throw | 90° | |
| Contact Material | Copper Alloy | |
| Contact Finish | Silver | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Panel Cutout Dimensions | Circular - 12.00mm Dia | |
| Features | - | |
| Depth Behind Flange | 26.50mm | |
| Operating Temperature | - | |
| Mechanical Life | - | |
| Electrical Life | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | KO103C701 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
KO103C701 is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of KO103C701 is new and unused, you can buy KO103C701 E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for KO103C701.
