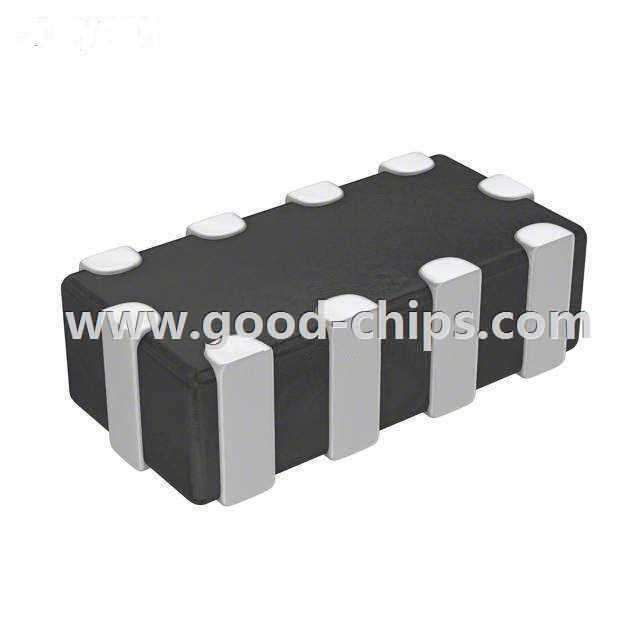

| Manufacturer Part Number: | KNA16300C16MA7TS |
|---|---|
| Manufacturer: | AVX Corporation |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LC EMI Filter Low Pass C = 16pF 35mA 0603 (1608 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | KNA16300C16MA7TS Datasheet |
| Internal Part Number | 898-KNA16300C16MA7TS | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 23/Apr/2013 | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | AVX Corporation | |
| Series | KNA, Kyocera | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Low Pass | |
| Filter Order | - | |
| Technology | LC | |
| Number of Channels | - | |
| Center / Cutoff Frequency | 300MHz (Cutoff) | |
| Attenuation Value | 25dB @ 800MHz ~ 1GHz | |
| Resistance - Channel (Ohms) | - | |
| Current | 35mA | |
| Values | C = 16pF | |
| ESD Protection | No | |
| Operating Temperature | -25°C ~ 85°C | |
| Applications | Data Lines for Mobile Devices | |
| Voltage - Rated | 25V | |
| Mounting Type | * | |
| Package / Case | 0603 (1608 Metric) | |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) | |
| Height | 0.024" (0.60mm) | |
| Standard Package | 7,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | KNA16300C16MA7TS | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
KNA16300C16MA7TS is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of KNA16300C16MA7TS is new and unused, you can buy KNA16300C16MA7TS AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for KNA16300C16MA7TS.
