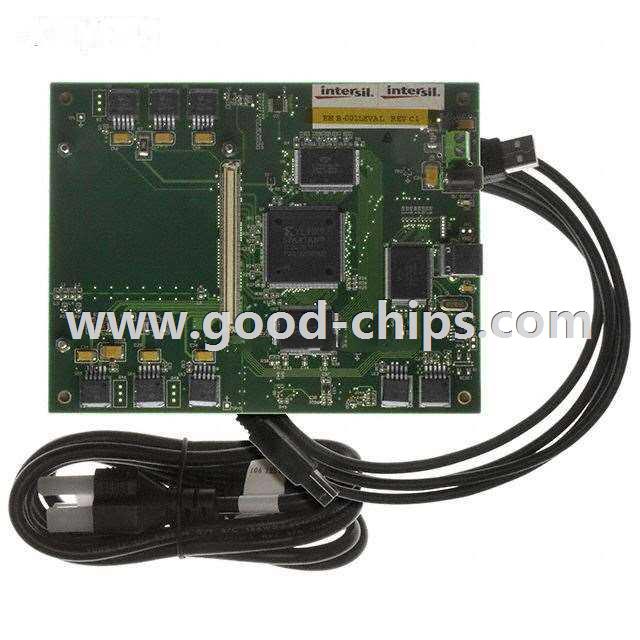

| Manufacturer Part Number: | KMB001LEVAL |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | Evaluation Boards - Analog to Digital Converters (ADCs) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | KDCxxxx Daughtercard with KADxxxx ADC FemtoCharge™ 8 ~ 14 Bit 40 ~ 500M Samples per Second Analog to Digital Converter (ADC) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | KMB001LEVAL Datasheet |
| Internal Part Number | 898-KMB001LEVAL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Analog to Digital Converters (ADCs) | |
| Manufacturer | Intersil | |
| Series | FemtoCharge™ | |
| Part Status | Obsolete | |
| Number of A/D Converters | 1 | |
| Number of Bits | 8 ~ 14 | |
| Sampling Rate (Per Second) | 40 ~ 500M | |
| Data Interface | Parallel | |
| Input Range | - | |
| Power (Typ) @ Conditions | - | |
| Utilized IC / Part | KDCxxxx Daughtercard with KADxxxx ADC | |
| Supplied Contents | Board, Cable, Power Supply | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | KMB001LEVAL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
KMB001LEVAL is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of KMB001LEVAL is new and unused, you can buy KMB001LEVAL Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for KMB001LEVAL.
