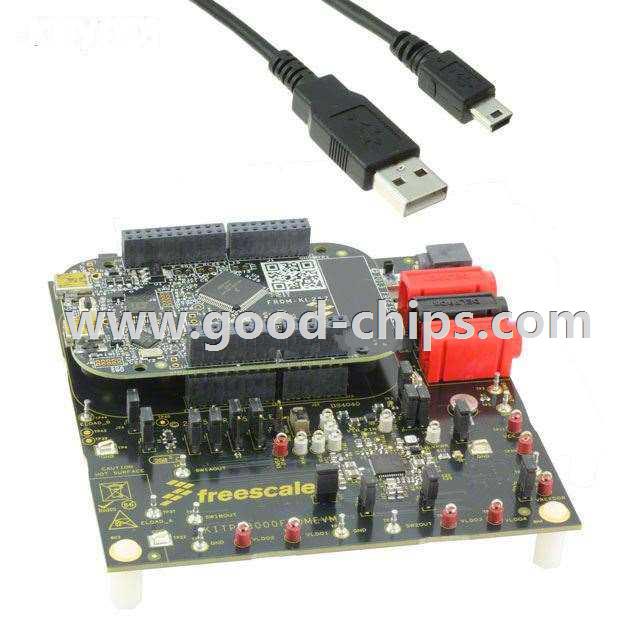

| Manufacturer Part Number: | KITPF3000FRDMEVM |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9021 Pieces |
| Unit Price: | Quote by Email |
| Description: | PF3000 - DC/DC, Step Up or Down with LDO 12, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | KITPF3000FRDMEVM Datasheet |
| Internal Part Number | 898-KITPF3000FRDMEVM | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Online Catalog | PF3000 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Freescale Semiconductor - NXP | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Up or Down with LDO | |
| Outputs and Type | 12, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | - | |
| Current - Output | 1.75A, 1.5A, 1.25A, 1A, 600mA, 350mA, 350mA, 250mA, 100mA, 100mA, 100mA, 1mA | |
| Voltage - Input | 2.8 V ~ 5.5 V | |
| Regulator Topology | Boost, Buck | |
| Frequency - Switching | - | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | PF3000 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | KITPF3000FRDMEVM | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
KITPF3000FRDMEVM is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of KITPF3000FRDMEVM is new and unused, you can buy KITPF3000FRDMEVM NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for KITPF3000FRDMEVM.
