Manufacturer Part Number: | KIT34704AEPEVBE |
---|---|
Manufacturer: | NXP Semiconductors |
Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MC34704A - DC/DC, Step Up or Down 8, Non-Isolated Outputs Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | KIT34704AEPEVBE Datasheet |
Internal Part Number | 898-KIT34704AEPEVBE | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Online Catalog | MC34704 Evaluation Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
Manufacturer | Freescale Semiconductor - NXP | |
Series | - | |
Part Status | Active | |
Main Purpose | DC/DC, Step Up or Down | |
Outputs and Type | 8, Non-Isolated | |
Power - Output | - | |
Voltage - Output | 5V | |
Current - Output | 500mA | |
Voltage - Input | 2.7 V ~ 5.5 V | |
Regulator Topology | Buck-Boost | |
Frequency - Switching | 2MHz | |
Board Type | Fully Populated | |

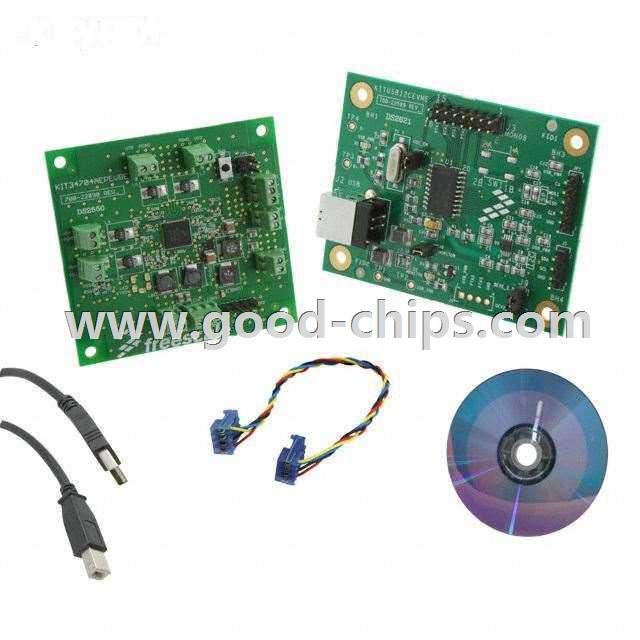

Supplied Contents | 2 Boards, Cables | |
Utilized IC / Part | MC34704A | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | KIT34704AEPEVBE | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
KIT34704AEPEVBE is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of KIT34704AEPEVBE is new and unused, you can buy KIT34704AEPEVBE NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for KIT34704AEPEVBE.
