Manufacturer Part Number: | KAT1104E |
---|---|
Manufacturer: | E-Switch |
Product Category: | DIP Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

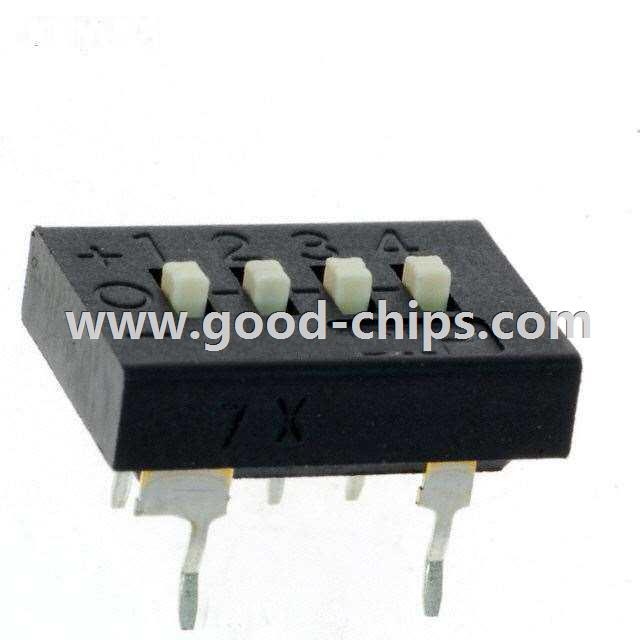

Description: | Dip Switch SPDT 4 Position Through Hole Slide (Standard) Actuator 25mA 24VDC |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | KAT1104E Datasheet |
Internal Part Number | 898-KAT1104E | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | KAT Series RoHS Cert of Compliance | |
Category | Switches | |
Family | DIP Switches | |
Manufacturer | E-Switch | |
Series | KAT | |
Packaging | Tube | |
Part Status | Obsolete | |
Circuit | SPDT | |
Number of Positions | 4 | |
Current Rating | 25mA | |
Voltage Rating | 24VDC | |
Actuator Type | Slide (Standard) | |
Actuator Level | Raised | |
Contact Material | - | |
Contact Finish | - | |
Height Above Board | 0.264" (6.70mm) | |
Mounting Type | Through Hole | |
Termination Style | PC Pin | |
Pitch | 0.100" (2.54mm), Full | |
Washable | No | |
Features | - | |
Body Material | - | |
Length | 0.557" (14.15mm) | |
Operating Temperature | - | |
Mechanical Life | 2,000 Cycles | |
Electrical Life | 2,000 Cycles | |
Standard Package | 33 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | KAT1104E | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
KAT1104E is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of KAT1104E is new and unused, you can buy KAT1104E E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for KAT1104E.
