Manufacturer Part Number: | KAP1108E |
---|---|
Manufacturer: | E-Switch |
Product Category: | DIP Switches |
Available Quantity: | 10307 Pieces |
Unit Price: | Quote by Email |

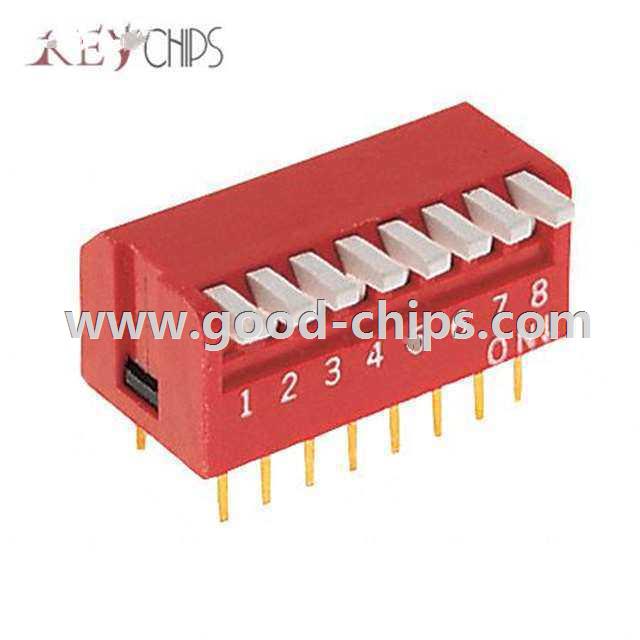

Description: | Dip Switch SPST 8 Position Through Hole, Right Angle Piano Actuator 25mA 24VDC |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | KAP1108E Datasheet |
Internal Part Number | 898-KAP1108E | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Switch Basics | |
RoHS Information | KAP Series RoHS Cert of Compliance | |
3D Model | KAP1108E.stp | |
Online Catalog | KAP Series | |
Category | Switches | |
Family | DIP Switches | |
Manufacturer | E-Switch | |
Series | KAP | |
Packaging | Tube | |
Part Status | Active | |
Circuit | SPST | |
Number of Positions | 8 | |
Current Rating | 25mA | |
Voltage Rating | 24VDC | |
Actuator Type | Piano | |
Actuator Level | Raised | |
Contact Material | Phosphor Bronze | |
Contact Finish | Gold | |
Height Above Board | 0.402" (10.20mm) | |
Mounting Type | Through Hole, Right Angle | |
Termination Style | PC Pin | |
Pitch | 0.100" (2.54mm), Full | |
Washable | No | |
Features | - | |
Body Material | Polybutylene Terephthalate (PBT), Glass Filled | |
Length | 0.861" (21.87mm) | |
Operating Temperature | -40°C ~ 85°C | |
Mechanical Life | 2,000 Cycles | |
Electrical Life | 2,000 Cycles | |
Standard Package | 21 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | KAP1108E | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
KAP1108E is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of KAP1108E is new and unused, you can buy KAP1108E E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for KAP1108E.
