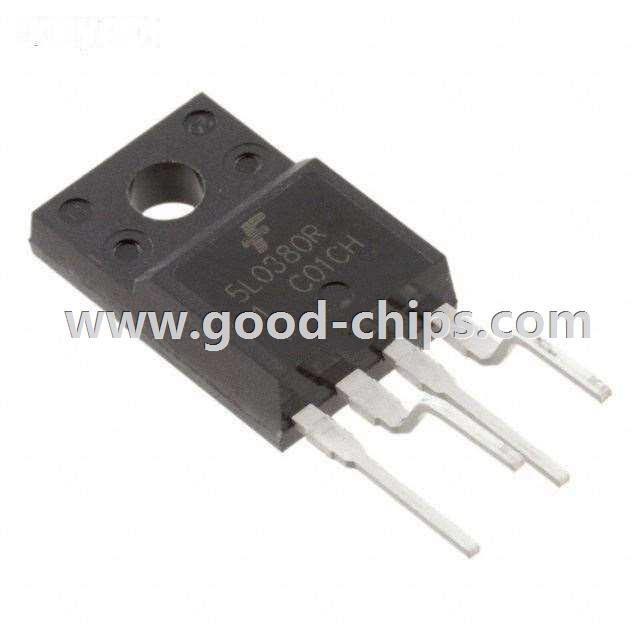

| Manufacturer Part Number: | KA5L0380RYDTU |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | PMIC - AC DC Converters, Offline Switchers |
| Available Quantity: | 9086 Pieces |
| Unit Price: | Quote by Email |
| Description: | Converter Offline Flyback, Forward Topology 50kHz TO-220F-4L (Forming) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | KA5L0380RYDTU Datasheet |
| Internal Part Number | 898-KA5L0380RYDTU | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | AC DC Converters, Offline Switchers | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - AC DC Converters, Offline Switchers | |
| Manufacturer | Fairchild Semiconductor | |
| Series | FPS™ | |
| Packaging | Tube | |
| Part Status | Not For New Designs | |
| Output Isolation | - | |
| Internal Switch(s) | Yes | |
| Voltage - Breakdown | 800V | |
| Topology | Flyback, Forward | |
| Voltage - Start Up | 15V | |
| Voltage - Supply (Vcc/Vdd) | 9 V ~ 30 V | |
| Duty Cycle | 77% | |
| Frequency - Switching | 50kHz | |
| Power (Watts) | - | |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage | |
| Control Features | - | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Package / Case | TO-220-4 Full Pack (Formed Leads) | |
| Supplier Device Package | TO-220F-4L (Forming) | |
| Mounting Type | Through Hole | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | KA5L0380RYDTU | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
KA5L0380RYDTU is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of KA5L0380RYDTU is new and unused, you can buy KA5L0380RYDTU Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for KA5L0380RYDTU.
