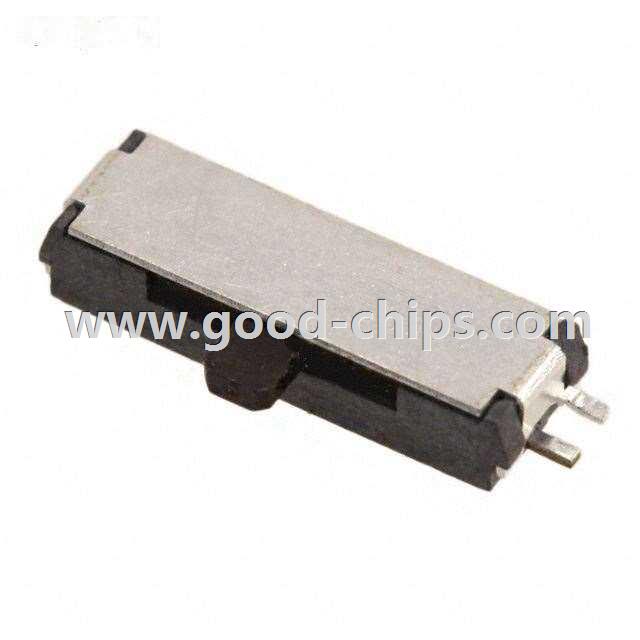

| Manufacturer Part Number: | JSM05000SAQN |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Slide Switches |
| Available Quantity: | 18210 Pieces |
| Unit Price: | Quote by Email |
| Description: | Slide Switch SP3T Surface Mount, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JSM05000SAQN Datasheet |
| Internal Part Number | 898-JSM05000SAQN | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | JSM05000SAQN.stp JSM05000SAQN.pdf | |
| Online Catalog | JSM Series | |
| Category | Switches | |
| Family | Slide Switches | |
| Manufacturer | C&K Components | |
| Series | JSM | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Circuit | SP3T | |
| Contact Timing | Not Specified | |
| Switch Function | Mom-On-Mom | |
| Current Rating | 300mA (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 4V | |
| Actuator Type | Standard | |
| Actuator Length | 1.50mm | |
| Contact Material | Beryllium Copper | |
| Contact Finish | Silver | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination Style | Gull Wing | |
| Features | - | |
| Actuator Material | Polyamide (PA46), Nylon 4/6 | |
| Switch Travel | 1.50mm | |
| Operating Temperature | -30°C ~ 85°C | |
| Mechanical Life | - | |
| Electrical Life | 10,000 Cycles | |
| Operating Force | - | |
| Standard Package | 2,300 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JSM05000SAQN | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JSM05000SAQN is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of JSM05000SAQN is new and unused, you can buy JSM05000SAQN C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JSM05000SAQN.
