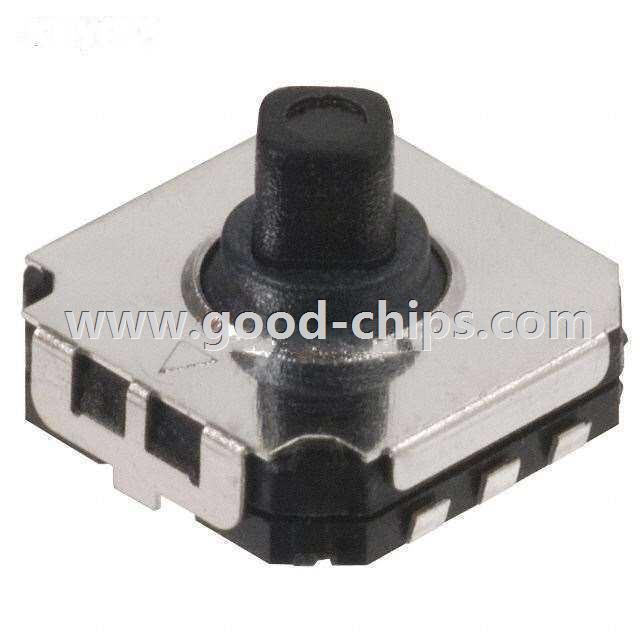

| Manufacturer Part Number: | JS1200ABQ |
|---|---|
| Manufacturer: | E-Switch |
| Product Category: | Navigation Switches, Joystick |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Navigation Switch, 2 - Axis Digital (Mechanical Switch) Output |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JS1200ABQ Datasheet |
| Internal Part Number | 898-JS1200ABQ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | JS1200 Series RoHS Cert of Compliance | |
| Category | Switches | |
| Family | Navigation Switches, Joystick | |
| Manufacturer | E-Switch | |
| Series | JS1200 | |
| Part Status | Obsolete | |
| Type | Navigation Switch, 2 - Axis | |
| Actuator Type | Plunger for Cap | |
| Switch Function | 4-Way Directional, Center Select | |
| Functions, Extra | - | |
| Output | Digital (Mechanical Switch) | |
| Voltage - Supply | - | |
| Current Rating | 20mA (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 15V | |
| Contact Material | - | |
| Contact Finish | - | |
| Mounting Type | Surface Mount | |
| Termination Style | J Lead | |
| Operating Temperature | -25°C ~ 70°C | |
| Panel Cutout Dimensions | - | |
| Ingress Protection | - | |
| Features | - | |
| Mechanical Life | 200,000 Cycles | |
| Electrical Life | 200,000 Cycles | |
| Operating Force | 320gf | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JS1200ABQ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JS1200ABQ is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of JS1200ABQ is new and unused, you can buy JS1200ABQ E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JS1200ABQ.
