Manufacturer Part Number: | JN6FR07SM1 |
---|---|
Manufacturer: | JAE Electronics |
Product Category: | Rectangular Connectors - Housings |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

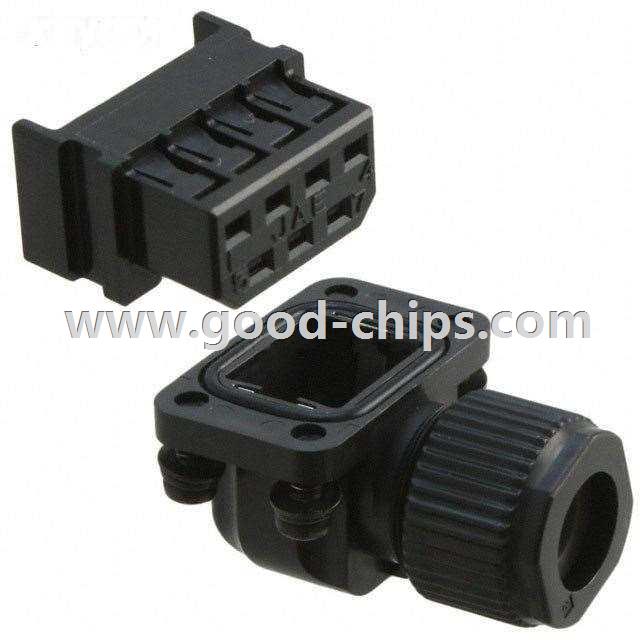

Description: | 7 Position Rectangular Housing Connector Plug Black 0.118" (3.00mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | JN6FR07SM1 Datasheet |
Internal Part Number | 898-JN6FR07SM1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | JN6 Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Housings | |
Manufacturer | JAE Electronics | |
Series | JN6 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Plug | |
Contact Type | Female Socket | |
Number of Positions | 7 | |
Pitch | 0.118" (3.00mm) | |
Number of Rows | 2 | |
Row Spacing | - | |
Mounting Type | Free Hanging (In-Line), Right Angle | |
Contact Termination | Crimp and Clamp | |
Fastening Type | - | |
Color | Black | |
Features | Waterproof (Mated, IP67) | |
Note | Contacts Not Provided | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | JN6FR07SM1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
JN6FR07SM1 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of JN6FR07SM1 is new and unused, you can buy JN6FR07SM1 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JN6FR07SM1.
