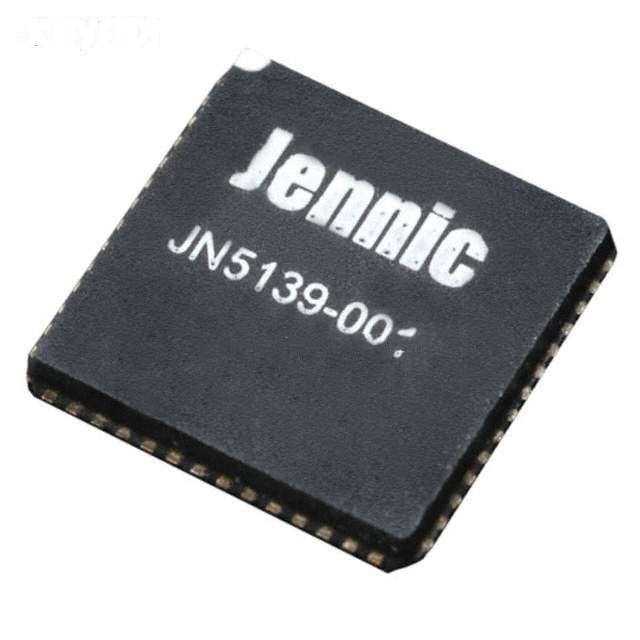

| Manufacturer Part Number: | JN5139-001-M/02R1V |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | RF Transceiver Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF TXRX MODULE 802.15.4 SMA ANT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JN5139-001-M/02R1V Datasheet |
| Internal Part Number | 898-JN5139-001-M/02R1V | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| PCN Obsolescence/ EOL | Multiple Devices 31/Dec/2011 | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver Modules | |
| Manufacturer | NXP Semiconductors | |
| Series | JN5139-001-M0xR | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| RF Family/Standard | 802.15.4 | |
| Protocol | Zigbee® | |
| Modulation | - | |
| Frequency | 2.4GHz | |
| Data Rate | - | |
| Power - Output | 19dBm | |
| Sensitivity | -100dBm | |
| Serial Interfaces | I²C, SPI, UART | |
| Antenna Type | Not Included, SMA | |
| Memory Size | 192kB ROM, 96kB RAM | |
| Voltage - Supply | 2.2 V ~ 3.6 V | |
| Current - Receiving | 45mA | |
| Current - Transmitting | 125mA | |
| Mounting Type | Surface Mount | |
| Operating Temperature | -40°C ~ 85°C | |
| Package / Case | Module | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JN5139-001-M/02R1V | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JN5139-001-M/02R1V is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of JN5139-001-M/02R1V is new and unused, you can buy JN5139-001-M/02R1V NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JN5139-001-M/02R1V.
