Manufacturer Part Number: | JN2FW15SL1 |
---|---|
Manufacturer: | JAE Electronics |
Product Category: | Circular Connectors - Housings |
Available Quantity: | 9107 Pieces |
Unit Price: | Quote by Email |

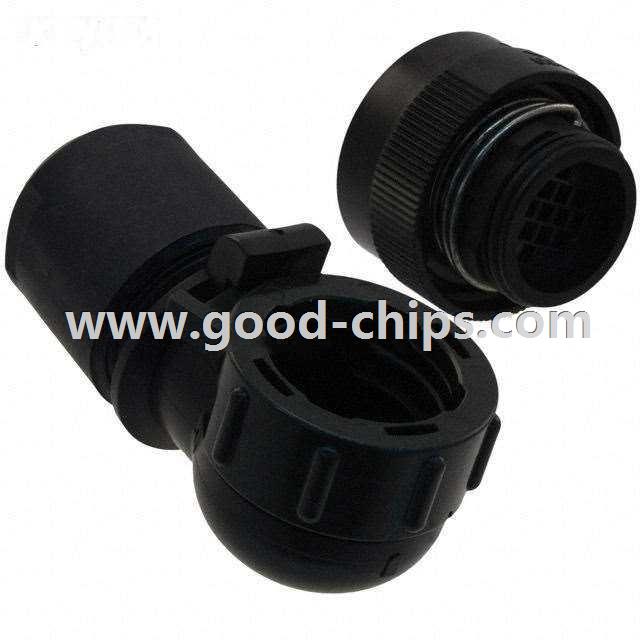

Description: | 15 Position Circular Connector Plug for Female Contacts Free Hanging (In-Line), Right Angle Backshell, Rotatable |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | JN2FW15SL1 Datasheet |
Internal Part Number | 898-JN2FW15SL1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | JN1 & JN2 Circular Connectors | |
Featured Product | JN1/JN2 Series of Small Circular Connectors | |
Online Catalog | JN2W Series | |
Category | Connectors, Interconnects | |
Family | Circular Connectors - Housings | |
Manufacturer | JAE Electronics | |
Series | JN2W | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Plug for Female Contacts | |
Number of Positions | 15 | |
Shell Size - Insert | W | |
Shell Size, MIL | - | |
Contact Type | Crimp | |
Contact Size | 22 | |
Mounting Type | Free Hanging (In-Line), Right Angle | |
Fastening Type | Push-Twist | |
Orientation | Keyed | |
Shell Material, Finish | Zinc Alloy, Zinc Plated, Black | |
Ingress Protection | IP67 - Dust Tight, Waterproof | |
Features | Backshell, Rotatable | |
Note | Contacts Not Provided | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | JN2FW15SL1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
JN2FW15SL1 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of JN2FW15SL1 is new and unused, you can buy JN2FW15SL1 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JN2FW15SL1.
