Manufacturer Part Number: | JN2FS10SL1-R |
---|---|
Manufacturer: | JAE Electronics |
Product Category: | Circular Connectors - Housings |
Available Quantity: | 9437 Pieces |
Unit Price: | Quote by Email |

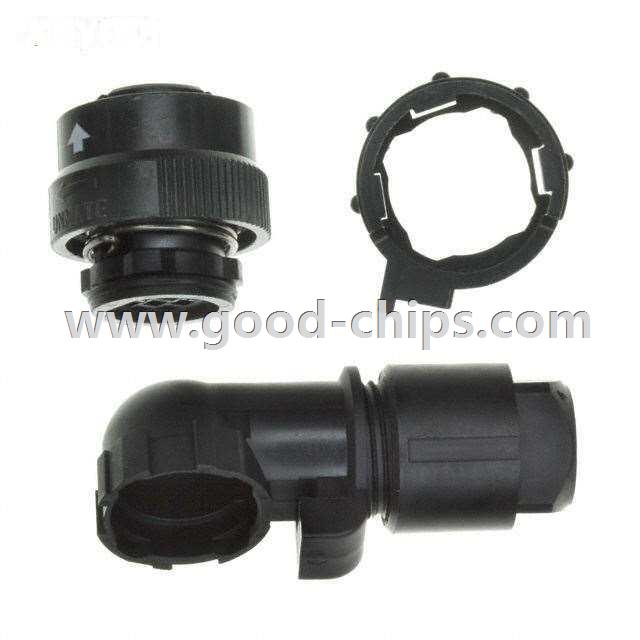

Description: | 10 Position Circular Connector Plug for Female Contacts Free Hanging (In-Line), Right Angle Backshell |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | JN2FS10SL1-R Datasheet |
Internal Part Number | 898-JN2FS10SL1-R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | JN1 & JN2 Circular Connectors | |
Featured Product | JN1/JN2 Series of Small Circular Connectors | |
Online Catalog | JN2 Series | |
Category | Connectors, Interconnects | |
Family | Circular Connectors - Housings | |
Manufacturer | JAE Electronics | |
Series | JN2 | |
Packaging | Tray | |
Part Status | Active | |
Connector Type | Plug for Female Contacts | |
Number of Positions | 10 | |
Shell Size - Insert | S | |
Shell Size, MIL | - | |
Contact Type | Crimp | |
Contact Size | 22 | |
Mounting Type | Free Hanging (In-Line), Right Angle | |
Fastening Type | Push-Twist | |
Orientation | N (Normal) | |
Shell Material, Finish | Zinc Alloy, Zinc Plated, Black | |
Ingress Protection | IP67 - Dust Tight, Waterproof | |
Features | Backshell | |
Note | Contacts Not Provided | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | JN2FS10SL1-R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
JN2FS10SL1-R is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of JN2FS10SL1-R is new and unused, you can buy JN2FS10SL1-R JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JN2FS10SL1-R.
