| Manufacturer Part Number: | JN2DW05MH1 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Circular Connectors |
| Available Quantity: | 9017 Pieces |
| Unit Price: | Quote by Email |

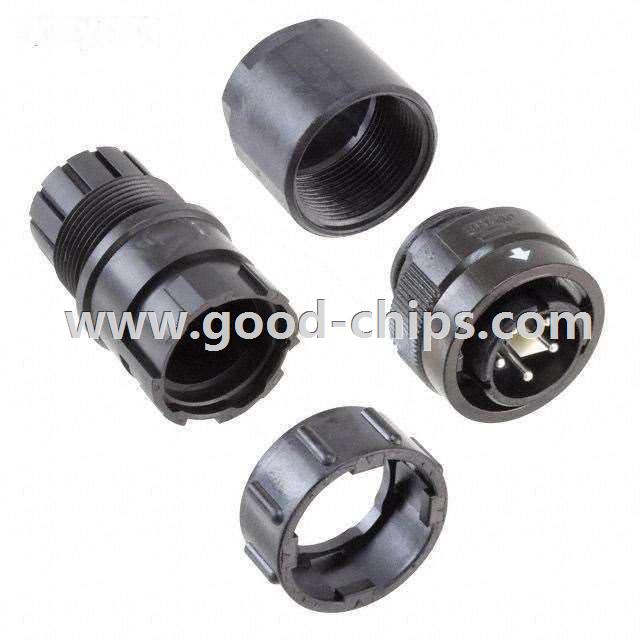

| Description: | 5 (4 + PE) Position Circular Connector Plug, Male Pins Solder Cup Silver |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JN2DW05MH1 Datasheet |
| Internal Part Number | 898-JN2DW05MH1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | JN2W Series | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors | |
| Manufacturer | JAE Electronics | |
| Series | JN2W | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 5 (4 + PE) | |
| Shell Size - Insert | W | |
| Shell Size, MIL | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Solder Cup | |
| Fastening Type | Push-Twist | |
| Orientation | N (Normal) | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Shell Material, Finish | Zinc Alloy, Zinc Plated, Black | |
| Contact Finish | Silver | |
| Features | Backshell | |
| Contact Finish Thickness | - | |
| Current Rating | 13A | |
| Voltage - Rated | 400VAC | |
| Operating Temperature | -20°C ~ 100°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JN2DW05MH1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JN2DW05MH1 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of JN2DW05MH1 is new and unused, you can buy JN2DW05MH1 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JN2DW05MH1.
