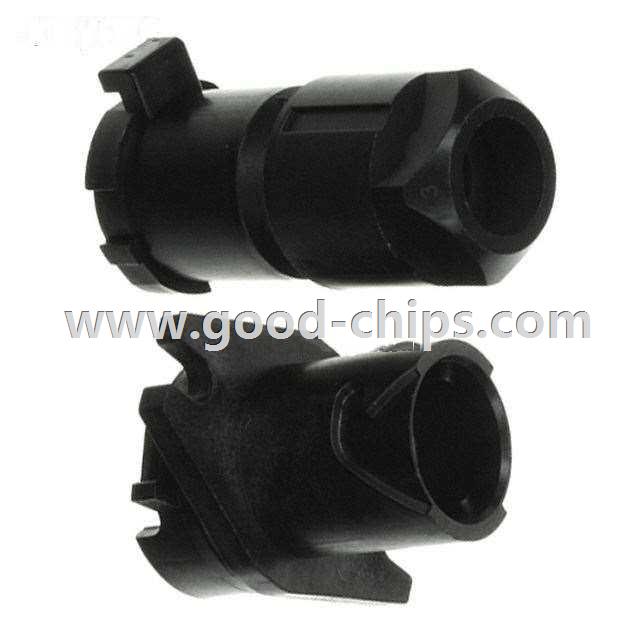

Manufacturer Part Number: | JN1KS10PL1 |
---|---|
Manufacturer: | JAE Electronics |
Product Category: | Circular Connectors - Housings |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 10 Position Circular Connector Receptacle for Male Contacts Panel Mount, Flange Backshell |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | JN1KS10PL1 Datasheet |
Internal Part Number | 898-JN1KS10PL1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Circular Connectors - Housings | |
Manufacturer | JAE Electronics | |
Series | JN1 | |
Packaging | Tray | |
Part Status | Active | |
Connector Type | Receptacle for Male Contacts | |
Number of Positions | 10 | |
Shell Size - Insert | S | |
Shell Size, MIL | - | |
Contact Type | Crimp | |
Contact Size | 22 | |
Mounting Type | Panel Mount, Flange | |
Fastening Type | Push-Twist | |
Orientation | N (Normal) | |
Shell Material, Finish | Synthetic Resin | |
Ingress Protection | IP67 - Dust Tight, Waterproof | |
Features | Backshell | |
Note | Contacts Not Provided | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | JN1KS10PL1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
JN1KS10PL1 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of JN1KS10PL1 is new and unused, you can buy JN1KS10PL1 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JN1KS10PL1.
