Manufacturer Part Number: | JN1HS04MK1-R |
---|---|
Manufacturer: | JAE Electronics |
Product Category: | Circular Connectors |
Available Quantity: | 9028 Pieces |
Unit Price: | Quote by Email |

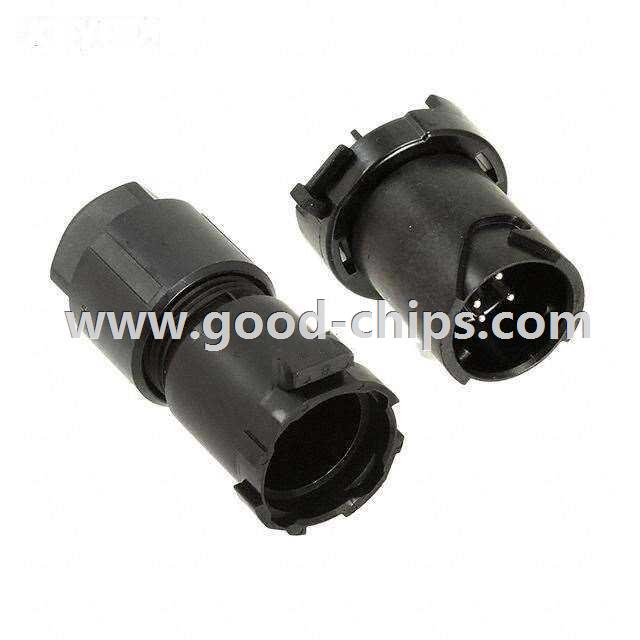

Description: | 4 (3 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup Silver |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | JN1HS04MK1-R Datasheet |
Internal Part Number | 898-JN1HS04MK1-R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | JN1 Series | |
Category | Connectors, Interconnects | |
Family | Circular Connectors | |
Manufacturer | JAE Electronics | |
Series | JN1 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Receptacle, Male Pins | |
Number of Positions | 4 (3 + PE) | |
Shell Size - Insert | S | |
Shell Size, MIL | - | |
Mounting Type | Free Hanging (In-Line) | |
Termination | Solder Cup | |
Fastening Type | Push-Twist | |
Orientation | N (Normal) | |
Ingress Protection | IP67 - Dust Tight, Waterproof | |
Shell Material, Finish | Synthetic Resin | |
Contact Finish | Silver | |
Features | Backshell | |
Contact Finish Thickness | - | |
Current Rating | 5A | |
Voltage - Rated | 200VAC | |
Operating Temperature | -20°C ~ 125°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | JN1HS04MK1-R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
JN1HS04MK1-R is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of JN1HS04MK1-R is new and unused, you can buy JN1HS04MK1-R JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JN1HS04MK1-R.
