| Manufacturer Part Number: | JN1AS10UL1 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Circular Connectors |
| Available Quantity: | 9475 Pieces |
| Unit Price: | Quote by Email |

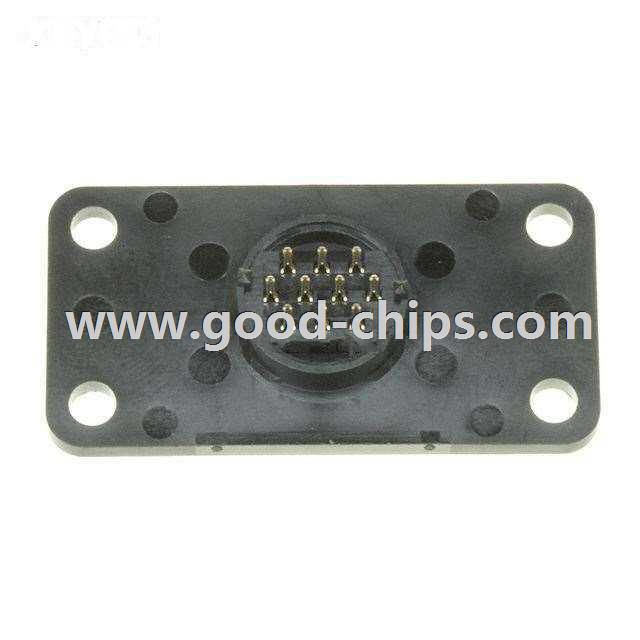

| Description: | 10 Position Circular Connector Receptacle, Male Pins Solder Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JN1AS10UL1 Datasheet |
| Internal Part Number | 898-JN1AS10UL1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | JN1 & JN2 Circular Connectors | |
| Featured Product | JN1/JN2 Series of Small Circular Connectors | |
| Online Catalog | JN1 Series | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors | |
| Manufacturer | JAE Electronics | |
| Series | JN1 | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | Receptacle, Male Pins | |
| Number of Positions | 10 | |
| Shell Size - Insert | S | |
| Shell Size, MIL | - | |
| Mounting Type | Panel Mount, Flange; Through Hole | |
| Termination | Solder | |
| Fastening Type | Push-Twist | |
| Orientation | N (Normal) | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Shell Material, Finish | Synthetic Resin | |
| Contact Finish | Gold | |
| Features | - | |
| Contact Finish Thickness | 3.9µin (0.10µm) | |
| Current Rating | 3A | |
| Voltage - Rated | 200VAC | |
| Operating Temperature | -20°C ~ 125°C | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JN1AS10UL1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JN1AS10UL1 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of JN1AS10UL1 is new and unused, you can buy JN1AS10UL1 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JN1AS10UL1.
