| Manufacturer Part Number: | JL10-2E22-22PE |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Circular Connectors |
| Available Quantity: | 9028 Pieces |
| Unit Price: | Quote by Email |

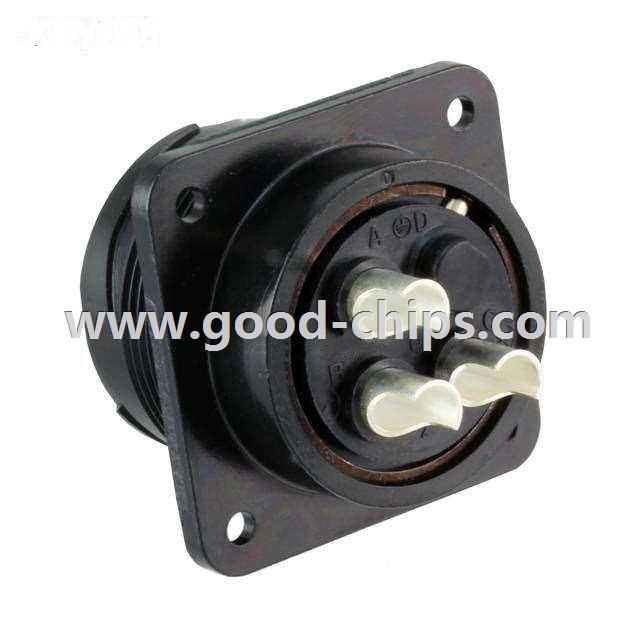

| Description: | 4 (3 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup Silver |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JL10-2E22-22PE Datasheet |
| Internal Part Number | 898-JL10-2E22-22PE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | JL10 Series Interface Connector | |
| Online Catalog | JL10 Series | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors | |
| Manufacturer | JAE Electronics | |
| Series | JL10 | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | Receptacle, Male Pins | |
| Number of Positions | 4 (3 + PE) | |
| Shell Size - Insert | 22-22 | |
| Shell Size, MIL | - | |
| Mounting Type | Panel Mount, Flange | |
| Termination | Solder Cup | |
| Fastening Type | Bayonet Lock, Threaded | |
| Orientation | N (Normal) | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Shell Material, Finish | Aluminum Alloy, Zinc Plated | |
| Contact Finish | Silver | |
| Features | - | |
| Contact Finish Thickness | - | |
| Current Rating | - | |
| Voltage - Rated | - | |
| Operating Temperature | - | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JL10-2E22-22PE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JL10-2E22-22PE is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of JL10-2E22-22PE is new and unused, you can buy JL10-2E22-22PE JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JL10-2E22-22PE.
