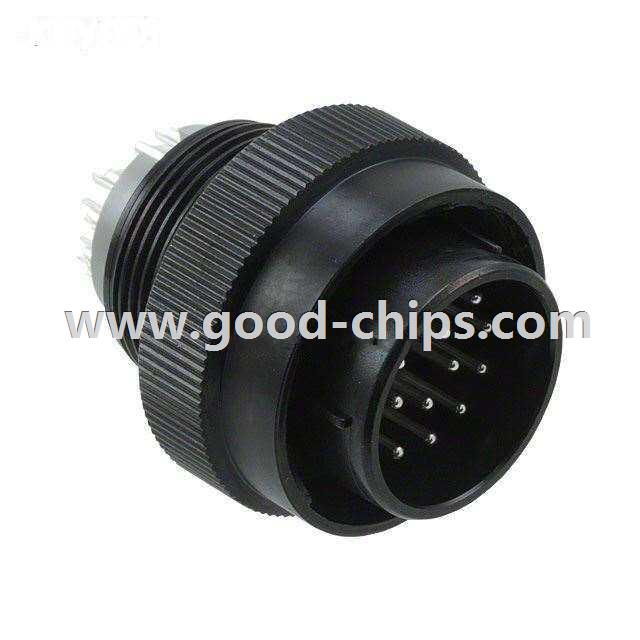

| Manufacturer Part Number: | JL05-6A20-29P-R |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Circular Connectors |
| Available Quantity: | 9300 Pieces |
| Unit Price: | Quote by Email |
| Description: | 17 (16 + PE) Position Circular Connector Plug, Male Pins Solder Silver |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JL05-6A20-29P-R Datasheet |
| Internal Part Number | 898-JL05-6A20-29P-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | JL05 Series | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors | |
| Manufacturer | JAE Electronics | |
| Series | JL05 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 17 (16 + PE) | |
| Shell Size - Insert | 20-29 | |
| Shell Size, MIL | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Solder | |
| Fastening Type | Bayonet Lock | |
| Orientation | N (Normal) | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Shell Material, Finish | Aluminum Alloy, Zinc Plated, Black | |
| Contact Finish | Silver | |
| Features | - | |
| Contact Finish Thickness | - | |
| Current Rating | 13A | |
| Voltage - Rated | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JL05-6A20-29P-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JL05-6A20-29P-R is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of JL05-6A20-29P-R is new and unused, you can buy JL05-6A20-29P-R JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JL05-6A20-29P-R.
