-R.jpg)

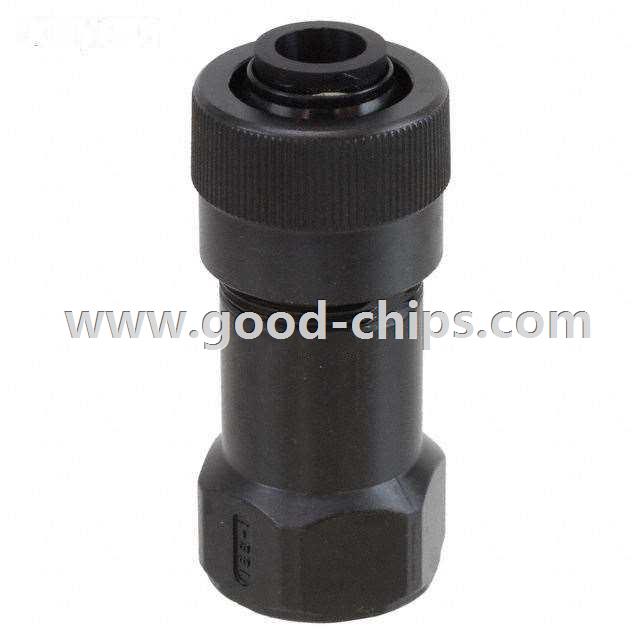

| Manufacturer Part Number: | JL05-18EB3B-(11)-R |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Circular Connectors - Backshells and Cable Clamps |
| Available Quantity: | 9063 Pieces |
| Unit Price: | Quote by Email |
| Description: | Black Connector Backshell, Cable Clamp 1-20 UNEF 18 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JL05-18EB3B-(11)-R Datasheet |
| Internal Part Number | 898-JL05-18EB3B-(11)-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | JL05 Series | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors - Backshells and Cable Clamps | |
| Manufacturer | JAE Electronics | |
| Series | JL05 | |
| Part Status | Active | |
| Type | Backshell, Cable Clamp | |
| Cable Opening | 0.433" (11.00mm) | |
| Diameter - Outside | 1.260" (32.00mm) | |
| Shell Size - Insert | 18 | |
| Thread Size | 1-20 UNEF | |
| Cable Exit | 180° | |
| Material | Aluminum Alloy | |
| Plating | Zinc | |
| Shielding | - | |
| Color | Black | |
| Features | Bushing, Sleeve | |
| Ingress Protection | Waterproof | |
| Includes | 8 pcs - 1 Backshell, 2 Bushings, 1 Compression Nut, 1 O-Ring, 2 Screws, 1 Sleeve | |
| Material Flammability Rating | - | |
| For Use With/Related Products | JL05 Series Connectors | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JL05-18EB3B-(11)-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JL05-18EB3B-(11)-R is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of JL05-18EB3B-(11)-R is new and unused, you can buy JL05-18EB3B-(11)-R JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JL05-18EB3B-(11)-R.
