Manufacturer Part Number: | JL04V-2E24-10PE(G)-B-R |
---|---|
Manufacturer: | JAE Electronics |
Product Category: | Circular Connectors |
Available Quantity: | 9133 Pieces |
Unit Price: | Quote by Email |

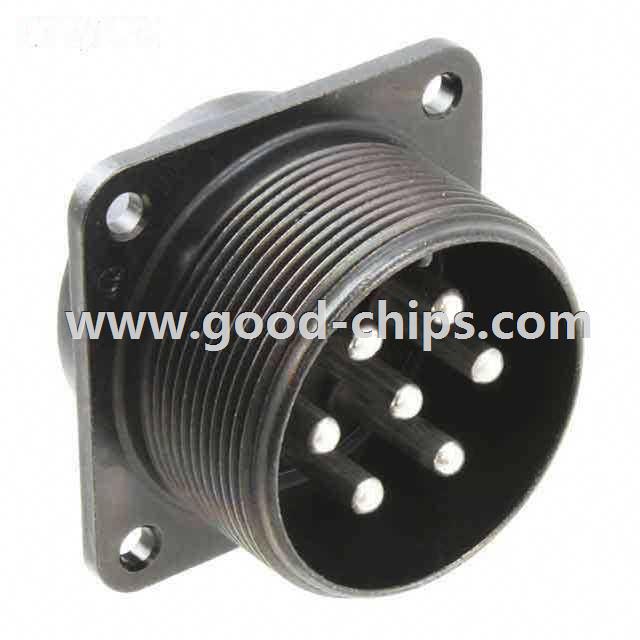

Description: | 7 (6 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup Silver |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | JL04V-2E24-10PE(G)-B-R Datasheet |
Internal Part Number | 898-JL04V-2E24-10PE(G)-B-R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | JL04V Series | |
Category | Connectors, Interconnects | |
Family | Circular Connectors | |
Manufacturer | JAE Electronics | |
Series | JL04V | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Receptacle, Male Pins | |
Number of Positions | 7 (6 + PE) | |
Shell Size - Insert | 24-10 | |
Shell Size, MIL | - | |
Mounting Type | Panel Mount, Flange | |
Termination | Solder Cup | |
Fastening Type | Threaded | |
Orientation | N (Normal) | |
Ingress Protection | IP67 - Dust Tight, Waterproof | |
Shell Material, Finish | Aluminum Alloy, Zinc Plated, Black | |
Contact Finish | Silver | |
Features | - | |
Contact Finish Thickness | - | |
Current Rating | 46A | |
Voltage - Rated | - | |
Operating Temperature | -55°C ~ 125°C | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | JL04V-2E24-10PE(G)-B-R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
JL04V-2E24-10PE(G)-B-R is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of JL04V-2E24-10PE(G)-B-R is new and unused, you can buy JL04V-2E24-10PE(G)-B-R JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JL04V-2E24-10PE(G)-B-R.
