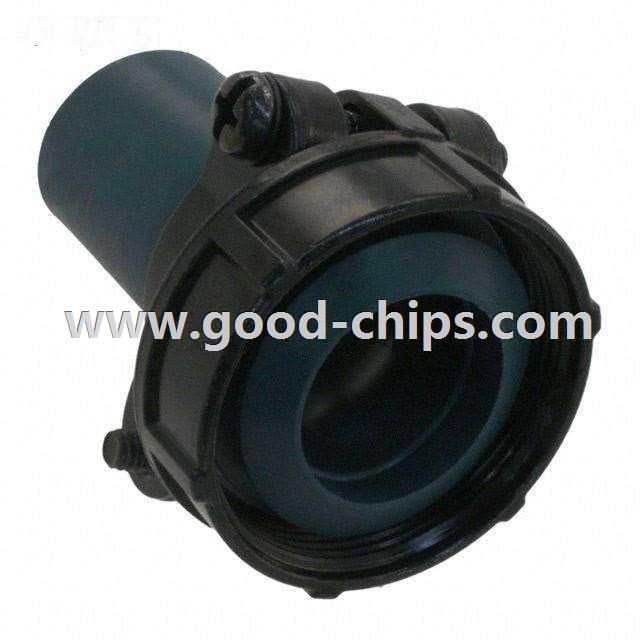

Manufacturer Part Number: | JL04-2428CK(20)-CR-R |
---|---|
Manufacturer: | JAE Electronics |
Product Category: | Circular Connectors - Backshells and Cable Clamps |
Available Quantity: | 9101 Pieces |
Unit Price: | Quote by Email |
Description: | Black Connector Cable Clamp 1 7/16-18 UNEF-2B 24, 28 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | JL04-2428CK(20)-CR-R Datasheet |
Internal Part Number | 898-JL04-2428CK(20)-CR-R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | JL04 Series Material 27/Jan/2016 | |
Online Catalog | JL04 Series | |
Category | Connectors, Interconnects | |
Family | Circular Connectors - Backshells and Cable Clamps | |
Manufacturer | JAE Electronics | |
Series | JL04V | |
Part Status | Active | |
Type | Cable Clamp | |
Cable Opening | 0.826" (21.00mm) | |
Diameter - Outside | 1.657" (42.10mm) | |
Shell Size - Insert | 24, 28 | |
Thread Size | 1 7/16-18 UNEF-2B | |
Cable Exit | 180° | |
Material | Aluminum Alloy | |
Plating | Zinc | |
Shielding | - | |
Color | Black | |
Features | Bushing, Clamp Screws, Washers | |
Ingress Protection | IP67 - Dust Tight, Waterproof | |
Includes | 9 pcs - 3 pc Cable Clamp, 1 Bushing, 2 Screws, 3 Washers | |
Material Flammability Rating | - | |
For Use With/Related Products | JL04V Series Connectors | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | JL04-2428CK(20)-CR-R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
JL04-2428CK(20)-CR-R is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of JL04-2428CK(20)-CR-R is new and unused, you can buy JL04-2428CK(20)-CR-R JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JL04-2428CK(20)-CR-R.
