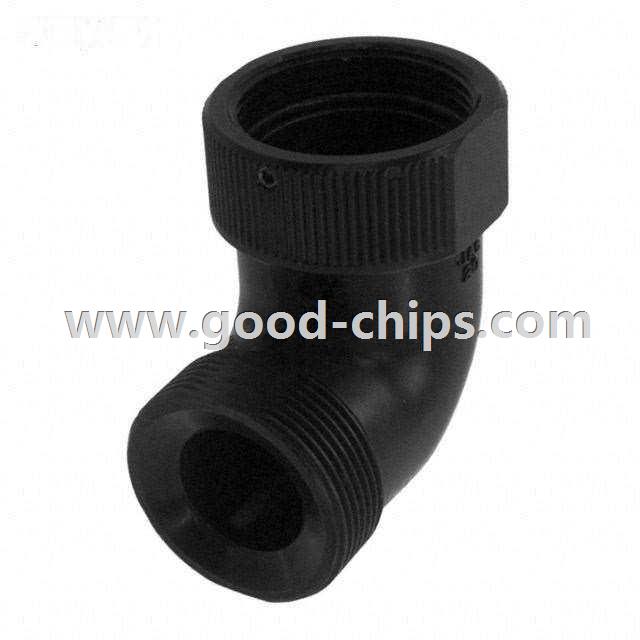

Manufacturer Part Number: | JL04-20EBL-R |
---|---|
Manufacturer: | JAE Electronics |
Product Category: | Circular Connectors - Backshells and Cable Clamps |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Black Connector Backshell 1 1/8-18 UNEF-2B 20 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | JL04-20EBL-R Datasheet |
Internal Part Number | 898-JL04-20EBL-R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Standard Package | 10 | |
Category | Connectors, Interconnects | |
Family | Circular Connectors - Backshells and Cable Clamps | |
Manufacturer | JAE Electronics | |
Series | JL04V | |
Part Status | Obsolete | |
Type | Backshell | |
Cable Opening | 0.669" (17.00mm) | |
Diameter - Outside | 1.390" (35.31mm) | |
Shell Size - Insert | 20 | |
Thread Size | 1 1/8-18 UNEF-2B | |
Cable Exit | 90° | |
Material | - | |
Plating | - | |
Shielding | - | |
Color | Black | |
Features | - | |
Ingress Protection | IP67 - Dust Tight, Waterproof | |
Includes | - | |
Material Flammability Rating | - | |
For Use With/Related Products | JL04V Series Connectors | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | JL04-20EBL-R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
JL04-20EBL-R is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of JL04-20EBL-R is new and unused, you can buy JL04-20EBL-R JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JL04-20EBL-R.
