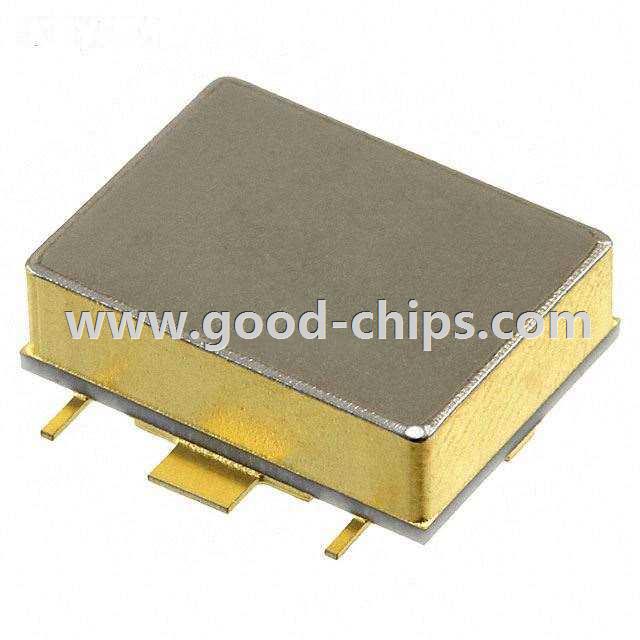

| Manufacturer Part Number: | JHS-115-PIN |
|---|---|
| Manufacturer: | M/A-Com Technology Solutions |
| Product Category: | RF Directional Coupler |
| Available Quantity: | 9028 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Directional Coupler 40MHz ~ 80MHz 1W 4-SMD Module w/Heat Tab |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JHS-115-PIN Datasheet |
| Internal Part Number | 898-JHS-115-PIN | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Online Catalog | JHS-115-PIN | |
| Category | RF/IF and RFID | |
| Family | RF Directional Coupler | |
| Manufacturer | M/A-Com Technology Solutions | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Coupler Type | Standard | |
| Frequency | 40MHz ~ 80MHz | |
| Coupling Factor | - | |
| Applications | - | |
| Insertion Loss | 0.5dB | |
| Power - Max | 1W | |
| Isolation | 20dB | |
| Return Loss | - | |
| Package / Case | 4-SMD Module w/Heat Tab | |
| Supplier Device Package | SF-1 | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JHS-115-PIN | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JHS-115-PIN is in stock for immediate shipping now. We are the distributor of M/A-Com Technology Solutions all series components. The condition of JHS-115-PIN is new and unused, you can buy JHS-115-PIN M/A-Com Technology Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JHS-115-PIN.
