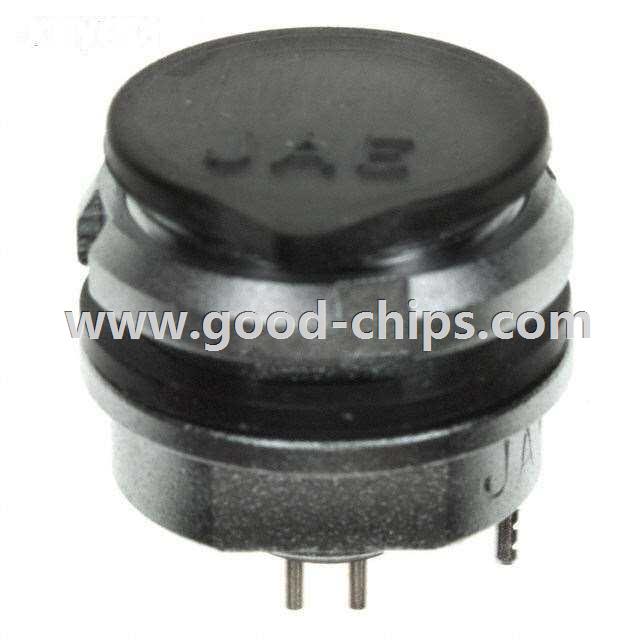

Manufacturer Part Number: | JB5CS04AM00N |
---|---|
Manufacturer: | JAE Electronics |
Product Category: | Circular Connectors |
Available Quantity: | 9243 Pieces |
Unit Price: | Quote by Email |
Description: | 4 Position Circular Connector Receptacle, Female Sockets Solder Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | JB5CS04AM00N Datasheet |
Internal Part Number | 898-JB5CS04AM00N | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | JB5 Series Compact Push-Pull Circular Connectors | |
Category | Connectors, Interconnects | |
Family | Circular Connectors | |
Manufacturer | JAE Electronics | |
Series | JB5 | |
Packaging | Tray | |
Part Status | Active | |
Connector Type | Receptacle, Female Sockets | |
Number of Positions | 4 | |
Shell Size - Insert | S | |
Shell Size, MIL | - | |
Mounting Type | Panel Mount, Bulkhead; Through Hole | |
Termination | Solder | |
Fastening Type | Push-Pull | |
Orientation | Keyed | |
Ingress Protection | IP68 - Dust Tight, Waterproof | |
Shell Material, Finish | Copper, Chromium Plated | |
Contact Finish | Gold | |
Features | Shielded | |
Contact Finish Thickness | - | |
Current Rating | 3A | |
Voltage - Rated | 320VAC | |
Operating Temperature | -55°C ~ 85°C | |
Standard Package | 23 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | JB5CS04AM00N | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
JB5CS04AM00N is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of JB5CS04AM00N is new and unused, you can buy JB5CS04AM00N JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JB5CS04AM00N.
